Description

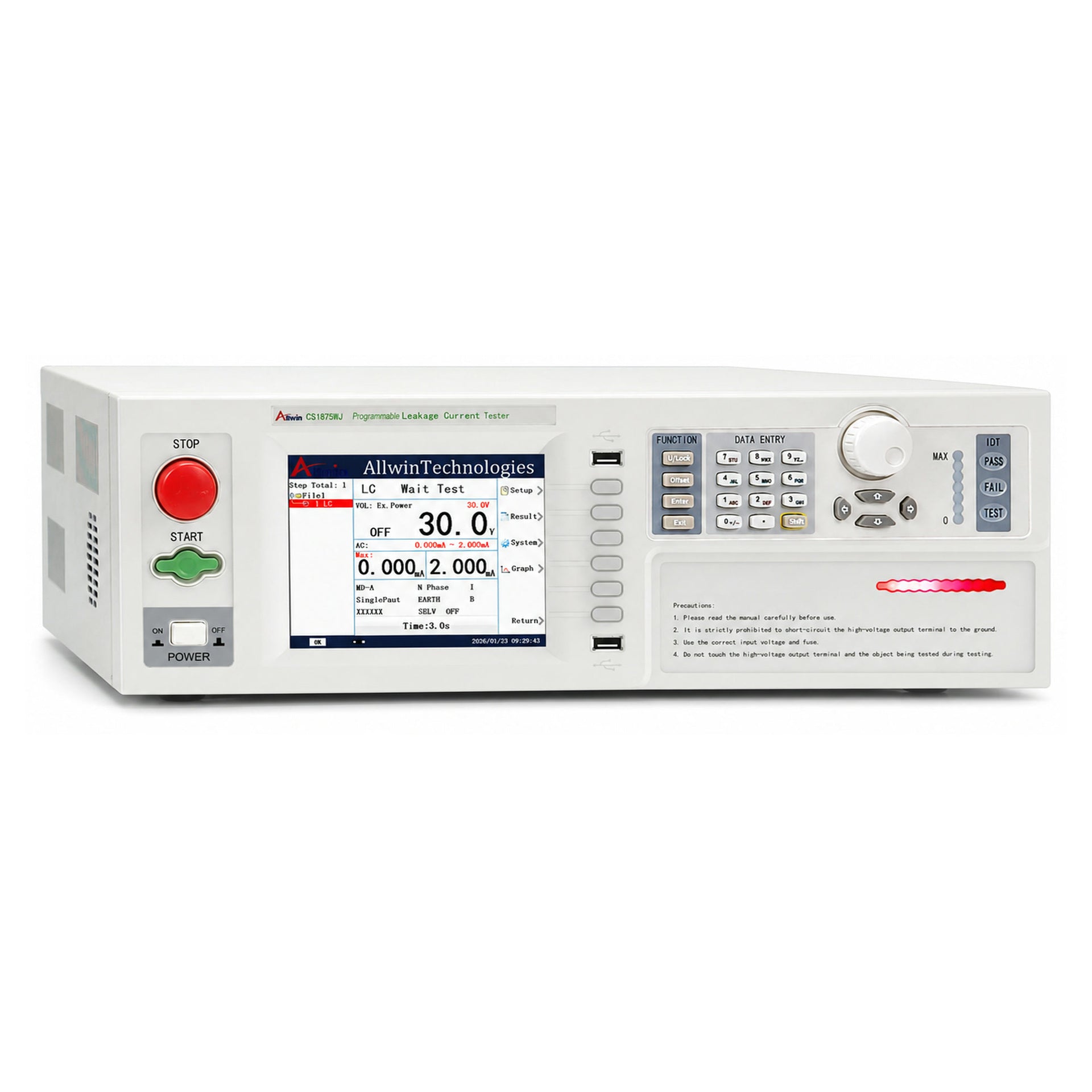

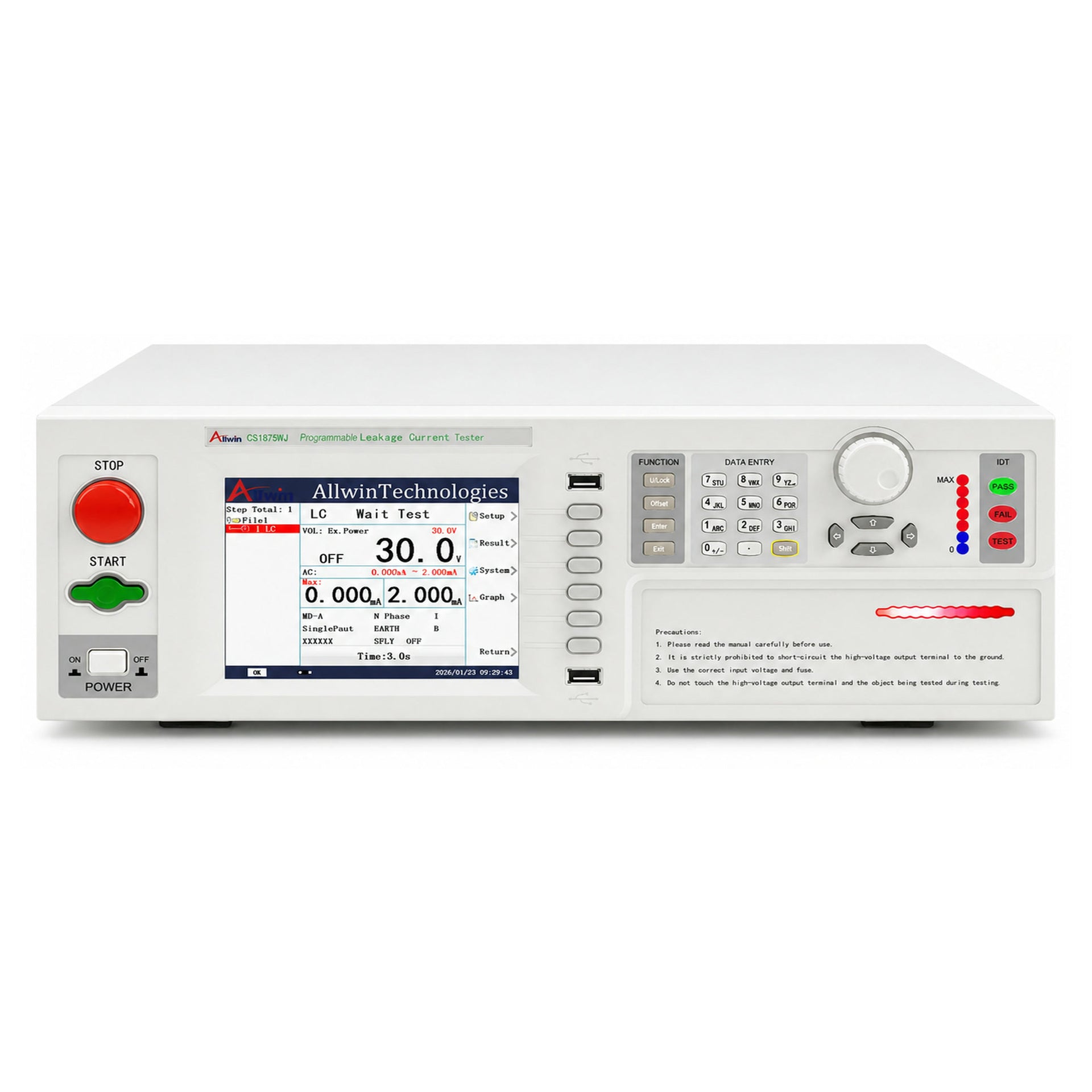

CS1875WJ is an ESI Leakage Current Tester with a key configuration of ≥3000VA. Contact ESI to confirm configuration, application suitability and quotation.
Key Selling Point
≥3000VA
Key Features
- Programmable settings
Key Technical Specifications
- LC:(30.0-300.0)V / 0.1uA-20mA
- Four detection methods
- Passive / 5000 VA max
- Six human-body networks
- Complies with GB 4793.1, GB 4706.1, GB 7000.1, GB 8898 and GB 4943.1
Testing Program Automation & Interfaces
- Programmable operation: Yes (program steps and interfaces should be confirmed against the manual)
Typical Applications
- General electrical safety testing
Product Information
- Model: CS1875WJ
- Unit dimensions: 37 × 42.6 × 14.6 cm
- Net weight: 16.5 kg
What's in the Box
- Leakage-current test clip | Model: CS26045Y-6 | Qty: 1 set
- Leakage-current test clip | Model: CS26045Y-9 | Qty: 1 set
- Leakage-current test clip | Model: CS26045Y-8 | Qty: 1 set
- Leakage-current test clip | Model: CS26045Y-10 | Qty: 1 set
- Leakage-current test clip | Model: CS26045Y-2 | Qty: 2 sets
- Leakage-current test clip | Model: CS26045Y-3 | Qty: 3 sets
- Leakage-current test clip | Model: CS26045Y-4 | Qty: 2 sets
- Leakage-current test clip | Model: CS26045Y-5 | Qty: 2 sets
- Leakage-current test clip | Model: CS26045Y-11 | Qty: 2 sets
- Connection lead (red) | Model: CS26045Y-17 | Qty: 1 set
- Connection lead (black) | Model: CS26045Y-17 | Qty: 1 set
- Connection lead (yellow) | Model: CS26045Y-17 | Qty: 1 set
- Electrical safety analyser accessory | Model: CS26017 | Qty: 1 set
- Power connection lead (red) | Model: CS26031-3 | Qty: 3 sets
- Power connection lead (black) | Model: CS26013-3 | Qty: 2 sets
- Data cable | Model: CS26023-1 | Qty: 1 set
- Power cord | Model: CS26031-1 | Qty: 1 set
Optional Accessories
- Leakage-current verification box | Model: CS26033 | Qty: 1 set
Contact & Quote: Contact ESI for pricing, lead time, configuration and application support.
