Description

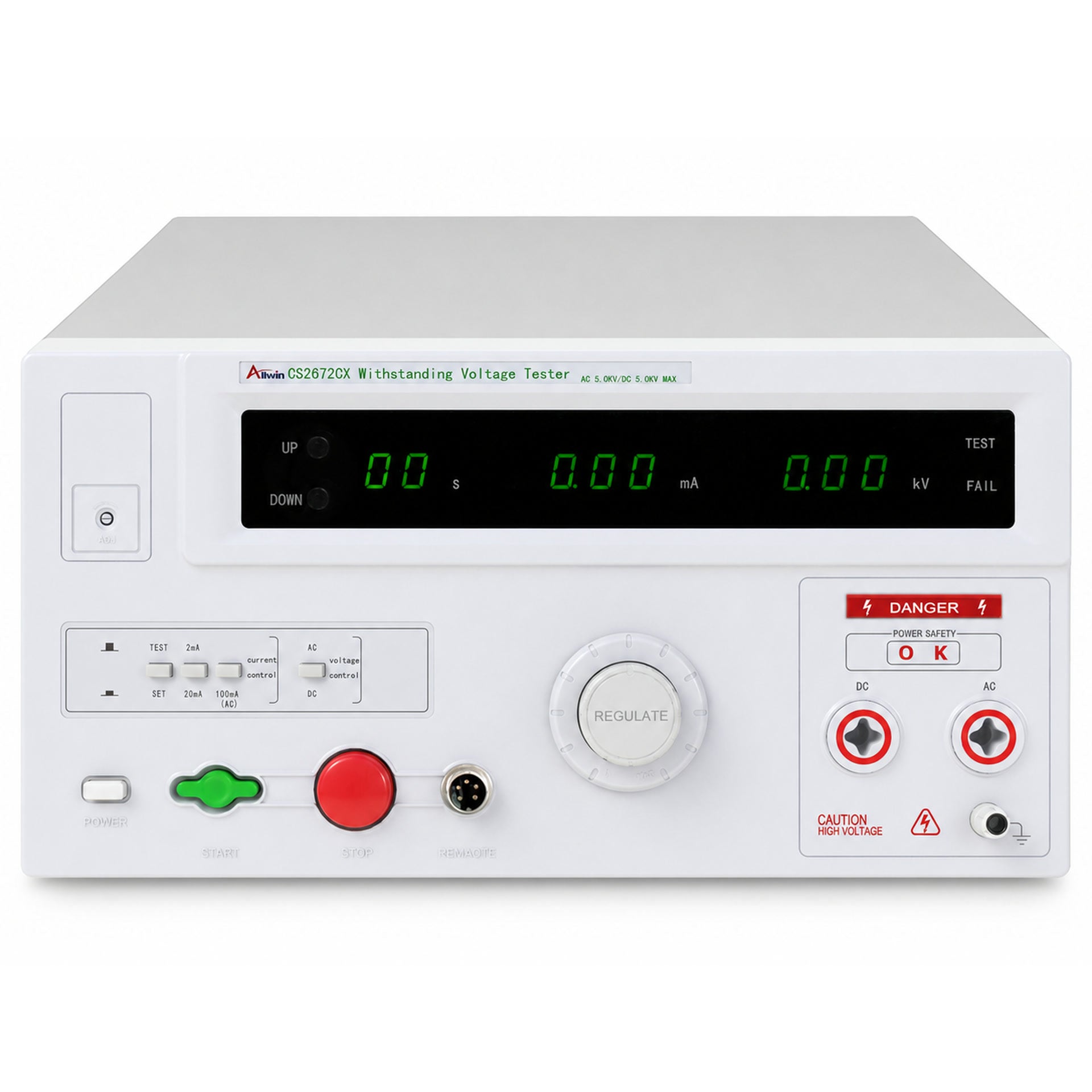

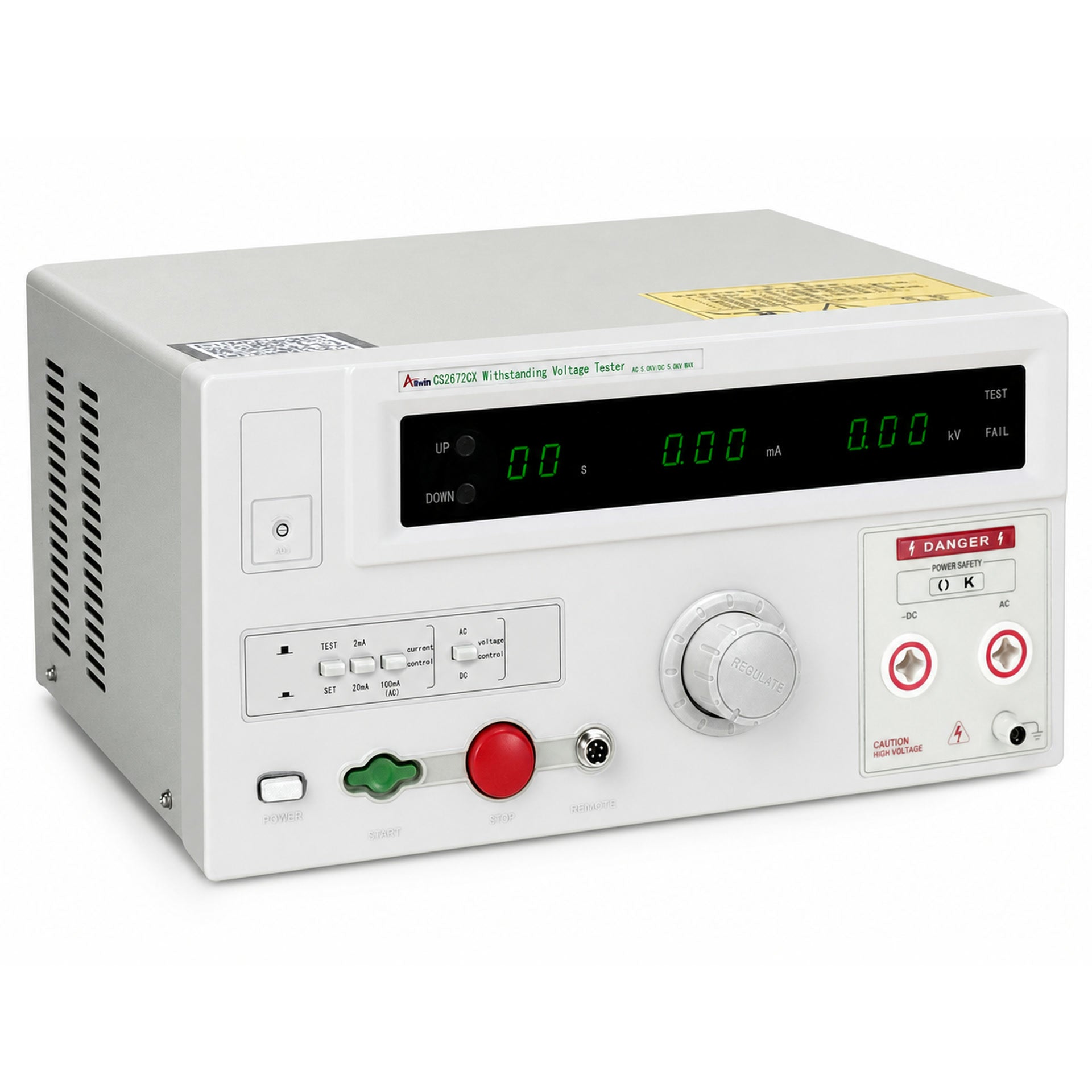

CS2672CX is an ESI AC/DC HiPot Tester with a key configuration of 5 kV. Contact ESI to confirm configuration, application suitability and quotation.
Key Selling Point
5 kV
Product Overview
High-voltage AC/DC output up to 5 kV.
Wide current ranges: AC 0.1–100 mA; DC 0.1–20 mA.
Measurement accuracy: ±(5% + 3 digits).
Straightforward operation and practical value.
Suitable for dielectric withstand testing across a range of applications.
Key Features
- Test modes: AC/DC
Key Technical Specifications
- ACW:0-5kV(AC),(0.1-100)mA(AC)
- DCW:0-5kV(DC),(0.1-20)mA (DC)
- Withstand voltage measurement accuracy: ±(5% + 3 digits)
Typical Applications
- General electrical safety testing
Product Information
- Model: CS2672CX
- Unit dimensions: 37.5 × 38 × 20.35 cm
- Net weight: 18.3 kg
What's in the Box
- Remote dielectric withstand test gun | Model: CS26002-1 | Qty: 1 set
- Dielectric withstand test clip | Model: CS26006-1 | Qty: 1 set
- Black ground lead | Model: CS26010-2 | Qty: 1 set
- Power cord | Model: CS26031-1 | Qty: 1 set
Optional Accessories
- Dielectric withstand verification box | Model: CS26032 | Qty: 1 set
Standards & Documentation
- CE: IEC60335-1:2016
- UL: UL62368-1:2023
- GB: GB/T4706.1-2024
Contact & Quote: Contact ESI for pricing, lead time, configuration and application support.
