Description

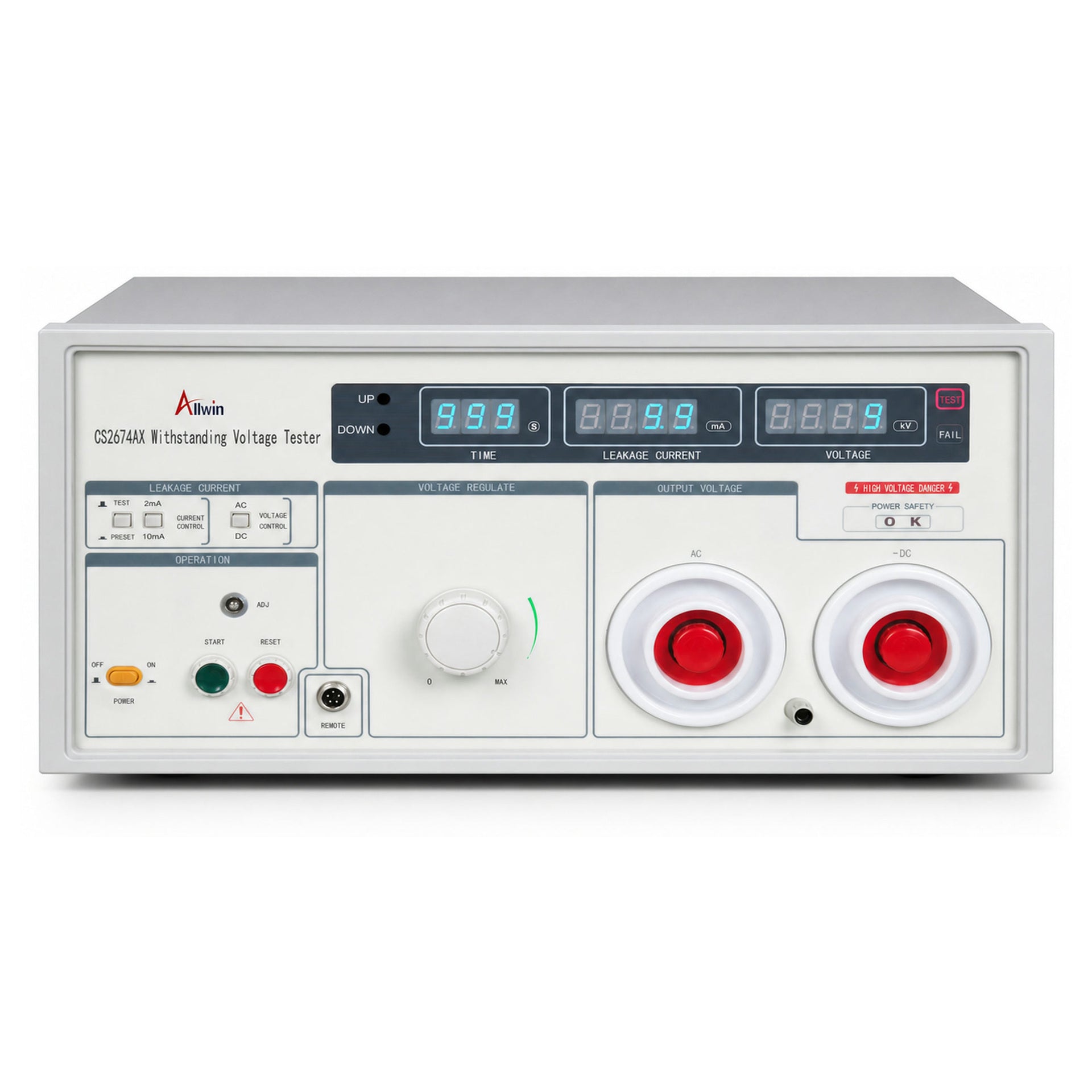

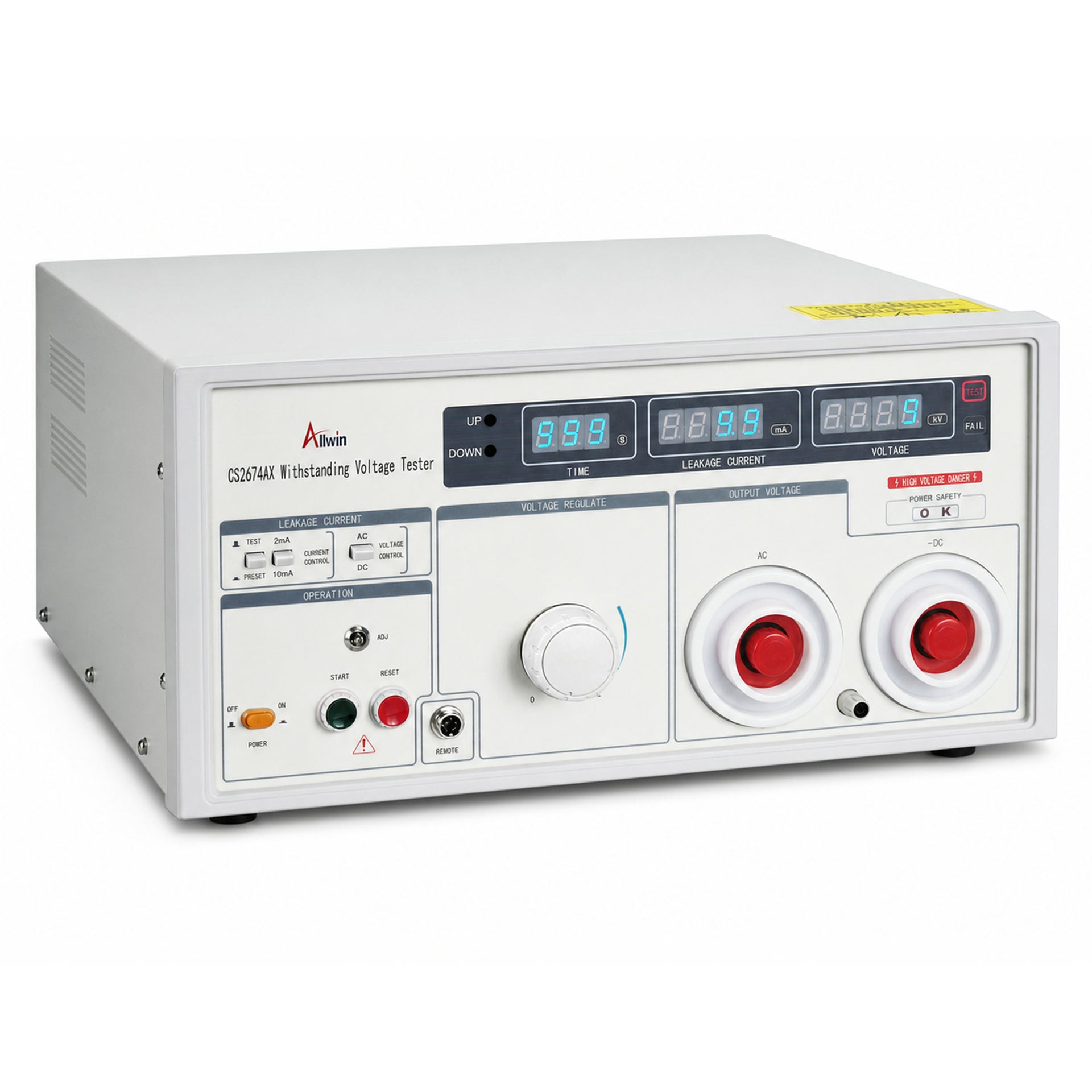

CS2674AX is an ESI Ultra-High Voltage HiPot Tester with a key configuration of 20kV. Contact ESI to confirm configuration, application suitability and quotation.
Key Selling Point
20kV
Product Overview
Ultra-high-voltage AC/DC operation covers 0.00–20.00 kV with a maximum output power of 200 VA for dielectric-strength testing.
AC/DC current measurement range: 0.100–10.00 mA, with selectable 2 mA and 10 mA ranges and 1 µA resolution.
Safety functions include power-supply safety detection with an OK indicator and a high-voltage warning with a Danger indicator. Proper grounding and insulated operating procedures remain required.
Supports timed testing from 0.0 to 999 seconds, with 0 seconds for continuous testing. The LED display shows voltage, current and time; an over-leakage condition triggers an alarm and disconnects the high-voltage output.
Key Features
- Test modes: AC/DC
- Ultra-high-voltage range: 20 kV
Key Technical Specifications
- ACW:0-20kV(AC),(0.1-10)mA(AC)
- DCW:0-20kV(DC),(0.1-10)mA(DC)
- Withstand voltage measurement accuracy: ±(5% + 3 digits)
Typical Applications
- Ultra-high-voltage testing
Product Information
- Model: CS2674AX
- Unit dimensions: 46 × 44 × 22.85 cm
- Net weight: 34 kg
What's in the Box
- 74AX high-voltage test clip | Model: CS26016_6_2m | Qty: 1 set
- Programmable current test clip | Model: CS26009_3_2m | Qty: 1 set
- Power cord | Model: CS26031_1 | Qty: 1 set
Optional Accessories
- Dielectric withstand verification box | Model: CS26032 | Qty: 1 set
Contact & Quote: Contact ESI for pricing, lead time, configuration and application support.
