Description

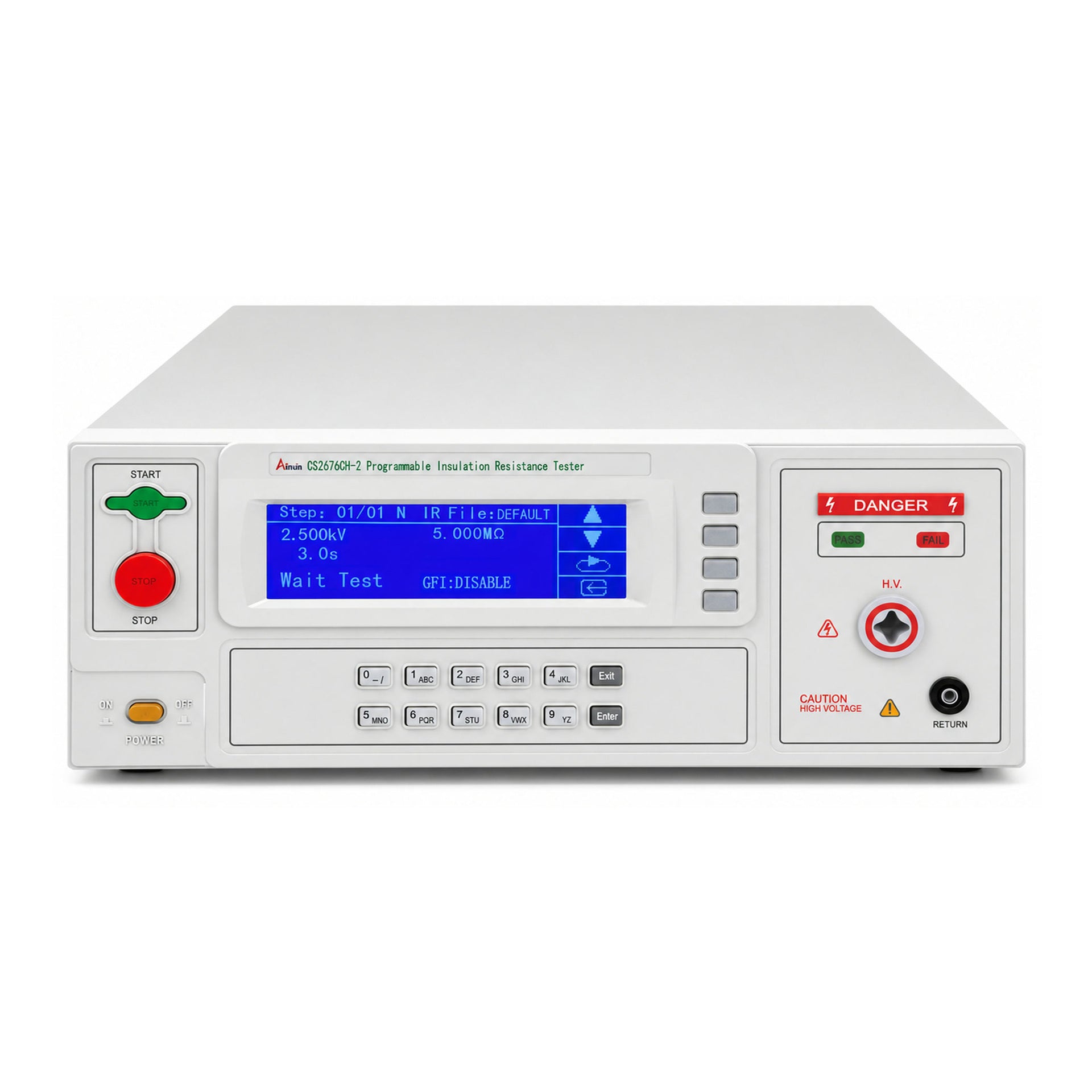

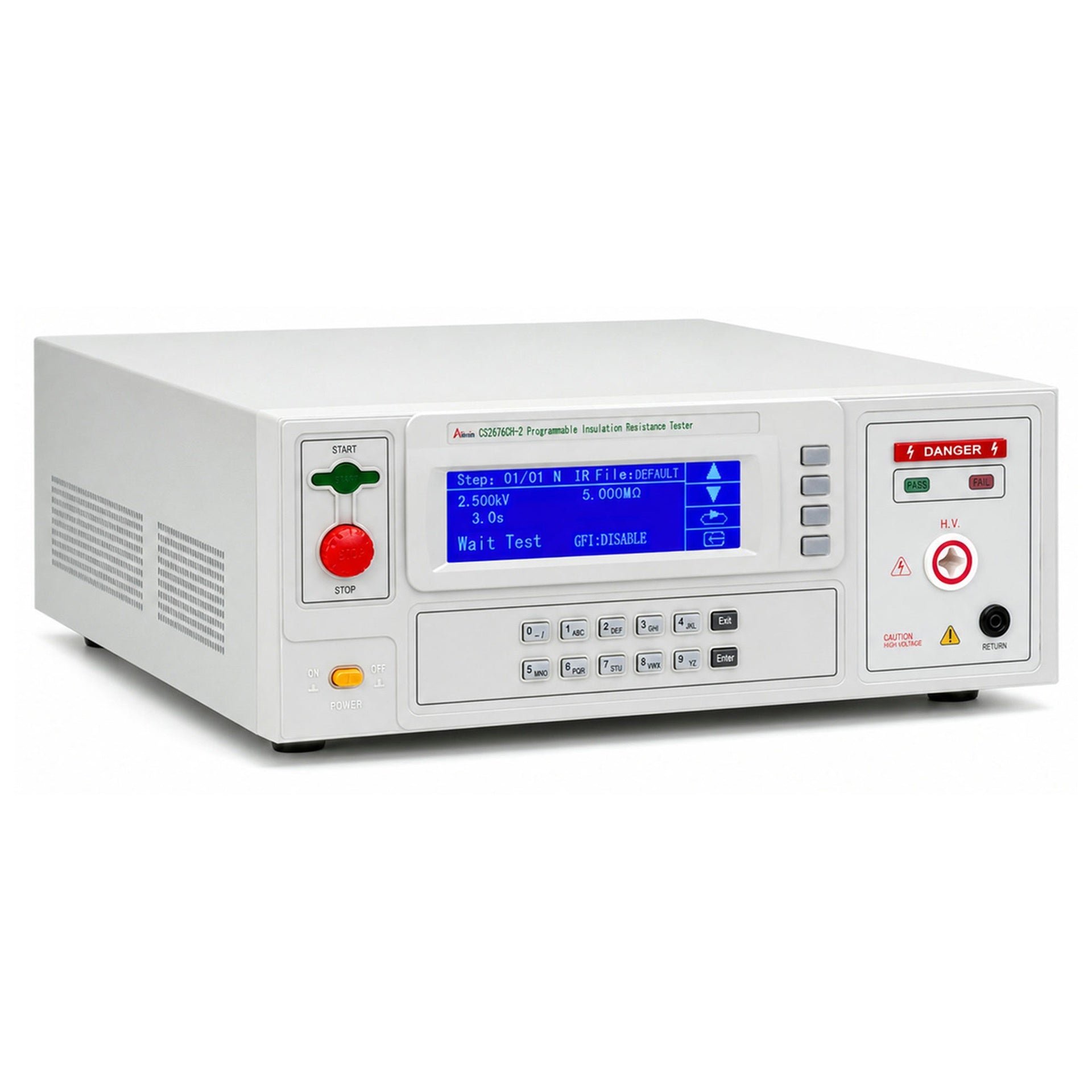

CS2676CH-2 is an ESI Insulation Resistance Tester with a key configuration of 10 kV insulation test voltage. Contact ESI to confirm configuration, application suitability and quotation.
Key Selling Point
10 kV insulation test voltage
Key Features
- Programmable settings
Key Technical Specifications
- IR:(0.500-10.00)kV(DC),1MΩ-9.99GΩ
- Insulation test voltage measurement accuracy: ±(1.5% + 5 V)
- Insulation resistance measurement accuracy: ±5%
Testing Program Automation & Interfaces
- Programmable operation: Yes (program steps and interfaces should be confirmed against the manual)
Typical Applications
- General electrical safety testing
Product Information
- Model: CS2676CH-2
- Unit dimensions: 53.1 × 35.5 × 14.6 cm
- Net weight: 14 kg
What's in the Box
- Programmable high-voltage test probe | Model: CS26009-1 | Qty: 1 set
- Programmable high-voltage test clip | Model: CS26009-2 | Qty: 1 set
- Programmable current test clip | Model: CS26009-3 | Qty: 1 set
- Power cord | Model: CS26031-1 | Qty: 1 set
Optional Accessories
- Insulation verification box | Model: CS26034 | Qty: 1 set
Contact & Quote: Contact ESI for pricing, lead time, configuration and application support.
