Description

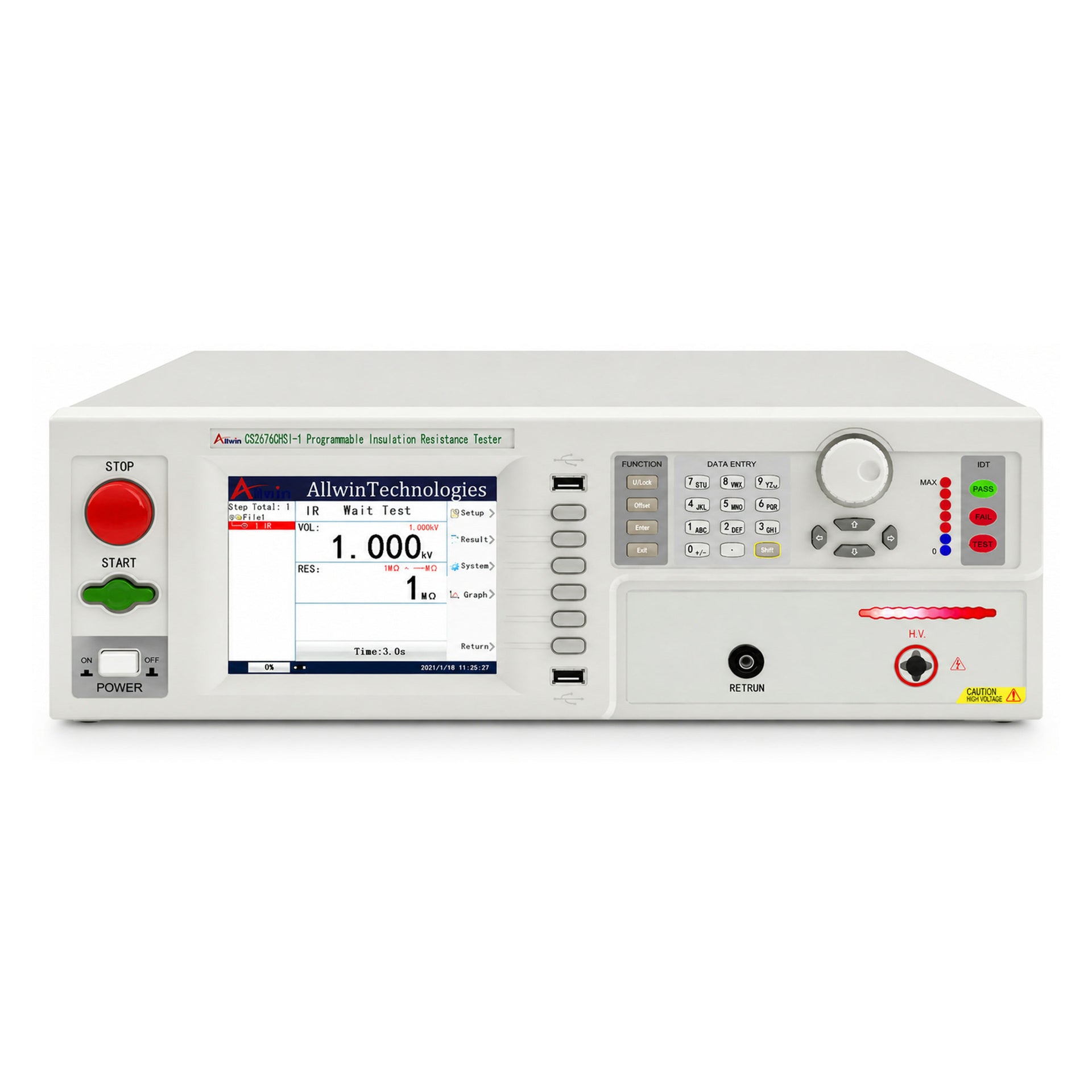

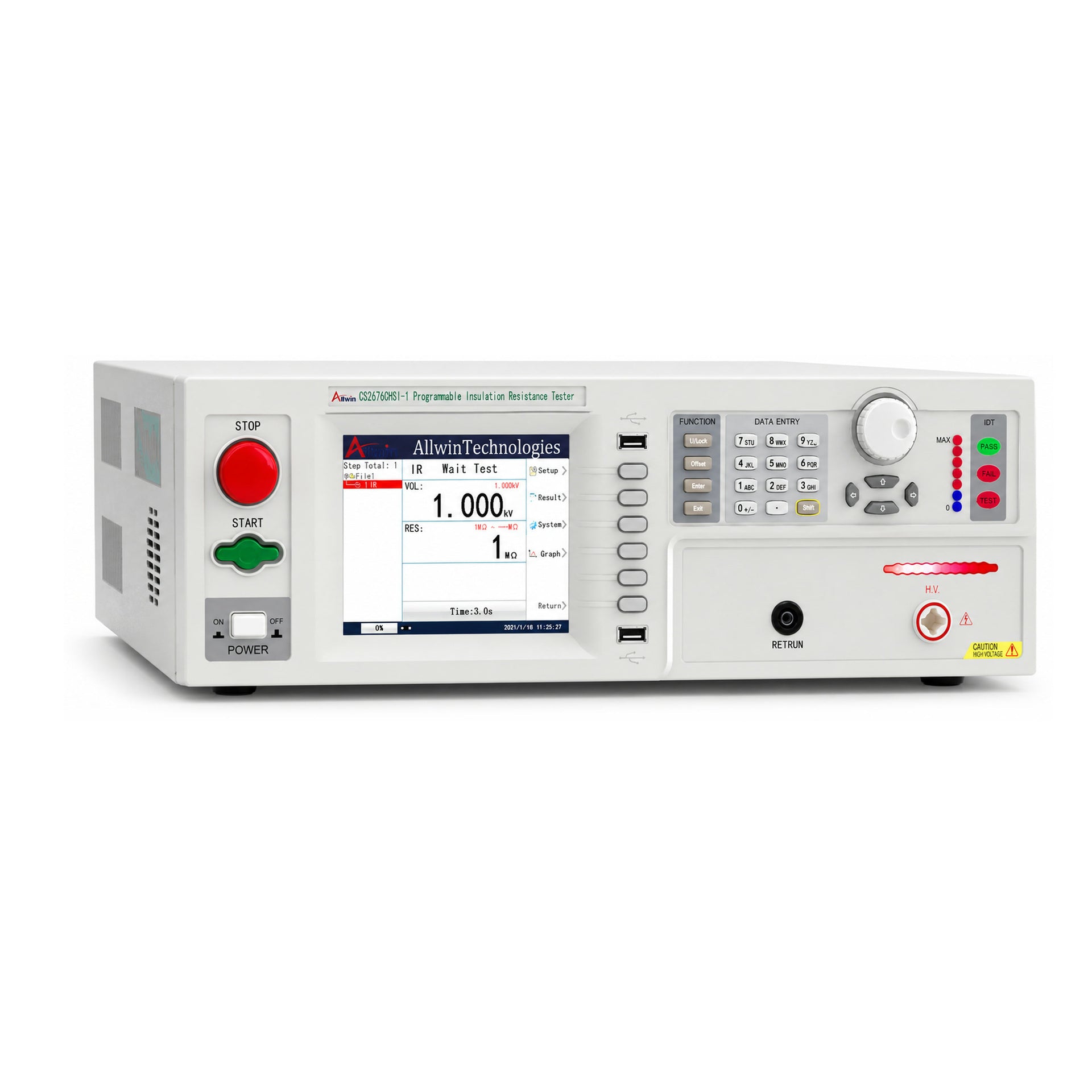

CS2676CHSI-1 is an ESI Insulation Resistance Tester with a key configuration of 5 kV insulation test voltage. Contact ESI to confirm configuration, application suitability and quotation.
Key Selling Point
5 kV insulation test voltage
Key Features
- Programmable settings
Key Technical Specifications
- IR:(0.050-5.000)kV(DC),1MΩ-49.99GΩ
- Insulation test voltage measurement accuracy: ±(1% rdg + 0.2% FS)
- Insulation resistance measurement accuracy: ±5%
Testing Program Automation & Interfaces
- Programmable operation: Yes (program steps and interfaces should be confirmed against the manual)
Typical Applications
- General electrical safety testing
Product Information
- Model: CS2676CHSI-1
- Unit dimensions: 52.7 × 42.6 × 14.6 cm
- Net weight: 17 kg
What's in the Box
- Programmable high-voltage test probe | Model: CS26009-1 | Qty: 1 set
- Programmable high-voltage test clip | Model: CS26009-2 | Qty: 1 set
- Programmable current test clip | Model: CS26009-3 | Qty: 1 set
- Data cable | Model: CS26023-1 | Qty: 1 set
- Power cord | Model: CS26031-1 | Qty: 1 set
Optional Accessories
- Insulation verification box | Model: CS26034 | Qty: 1 set
Contact & Quote: Contact ESI for pricing, lead time, configuration and application support.
