Description

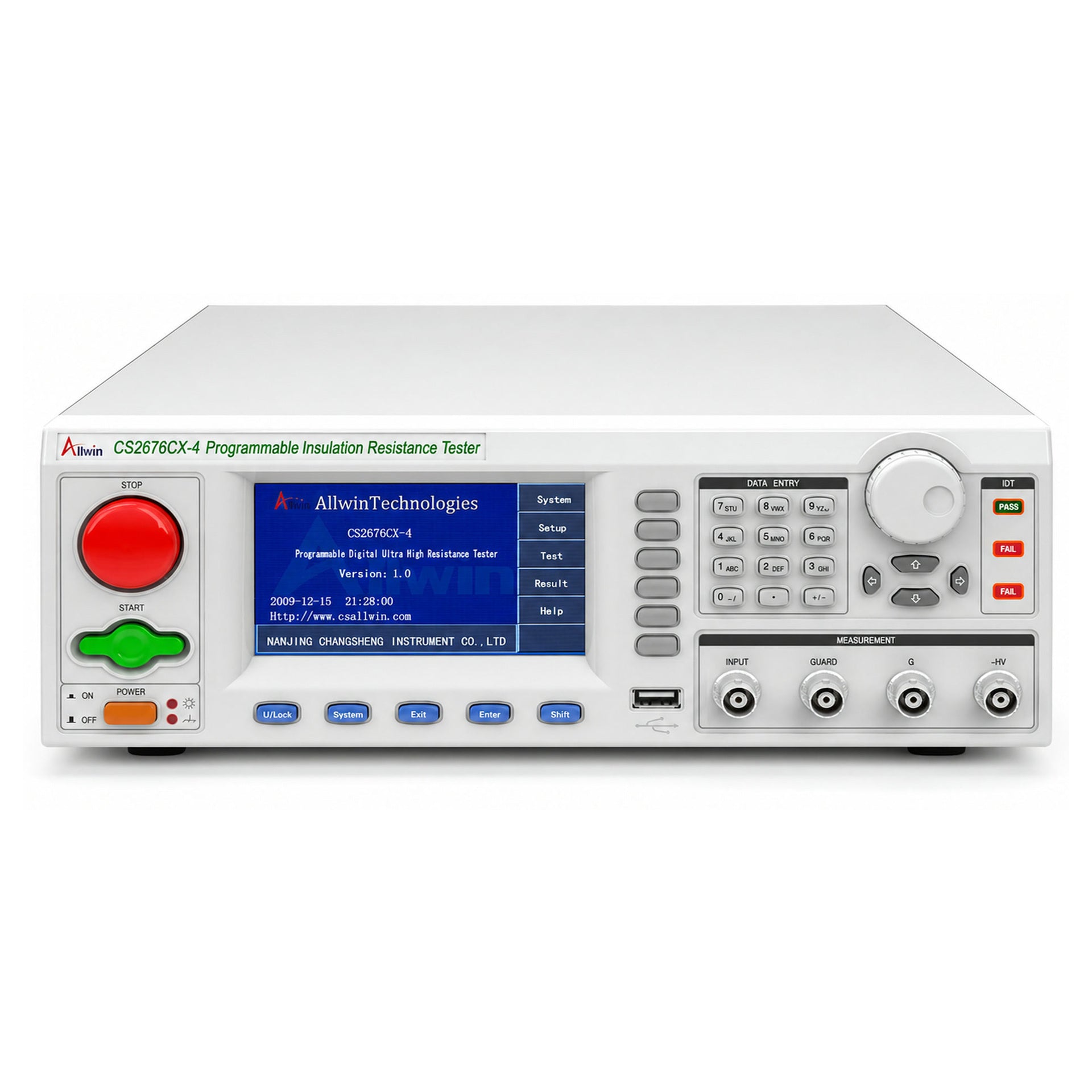

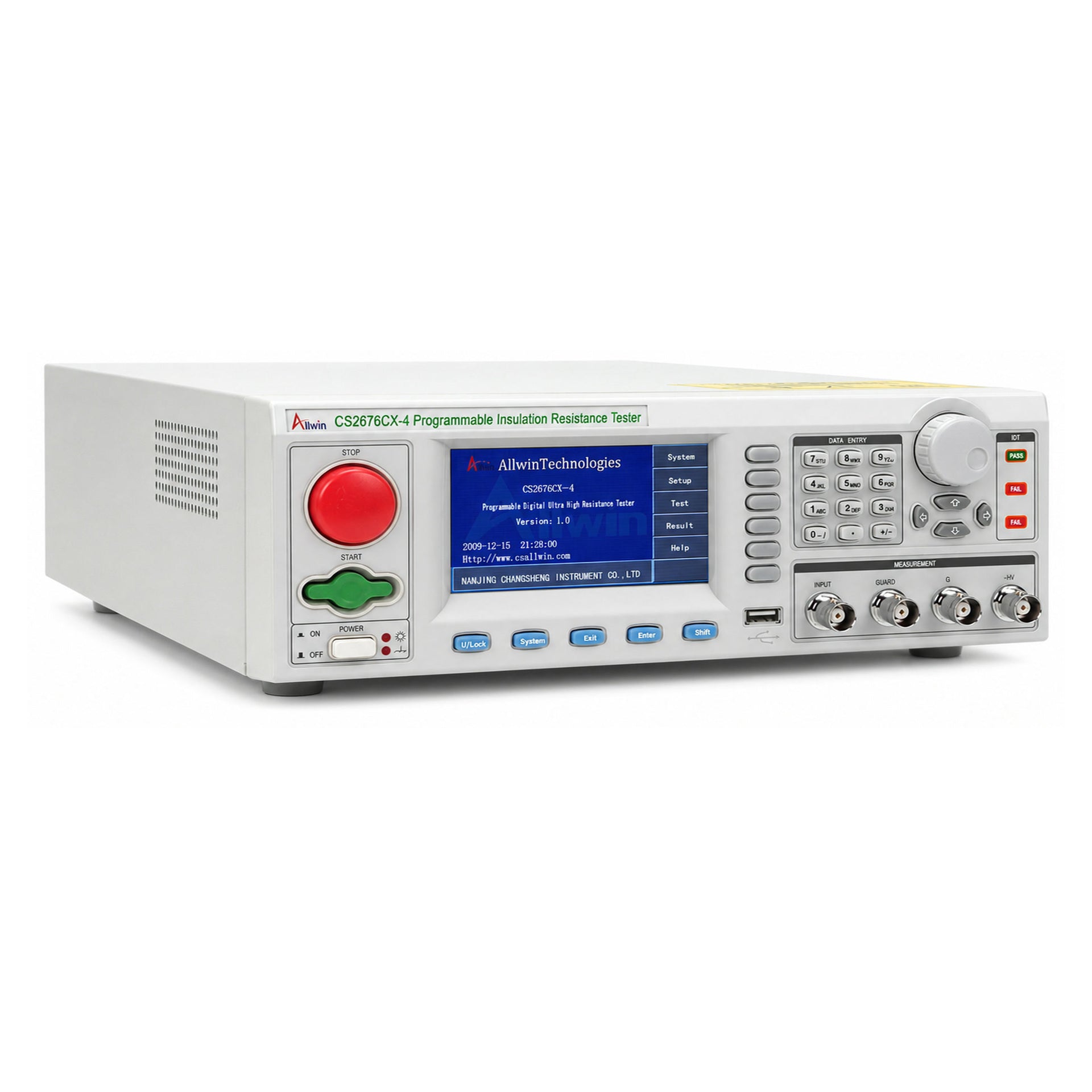

CS2676CX-4 is an ESI Insulation Resistance Tester with a key configuration of 10 TΩ insulation resistance. Contact ESI to confirm configuration, application suitability and quotation.
Key Selling Point
10 TΩ insulation resistance
Key Features
- Programmable settings
Key Technical Specifications
- IR:(1.000-1000)V(DC),100 kΩ-10TΩ
- Voltage accuracy: ±(2% + 2 digits)
- Insulation resistance accuracy: ±5%
Testing Program Automation & Interfaces
- Programmable operation: Yes (program steps and interfaces should be confirmed against the manual)
Typical Applications
- General electrical safety testing
Product Information
- Model: CS2676CX-4
- Unit dimensions: 43.5 × 29 × 11.35 cm
- Net weight: 10 kg
What's in the Box
- Insulation resistance test accessory | Model: CS26018-3 | Qty: 1 set
- Insulation resistance test accessory | Model: CS26018-4 | Qty: 3 sets
- Power cord | Model: CS26031-1 | Qty: 1 set
- Data cable | Model: CS26023-1 | Qty: 1 set
Optional Accessories
- Insulation verification box | Model: CS26034 | Qty: 1 set
Contact & Quote: Contact ESI for pricing, lead time, configuration and application support.
