Description

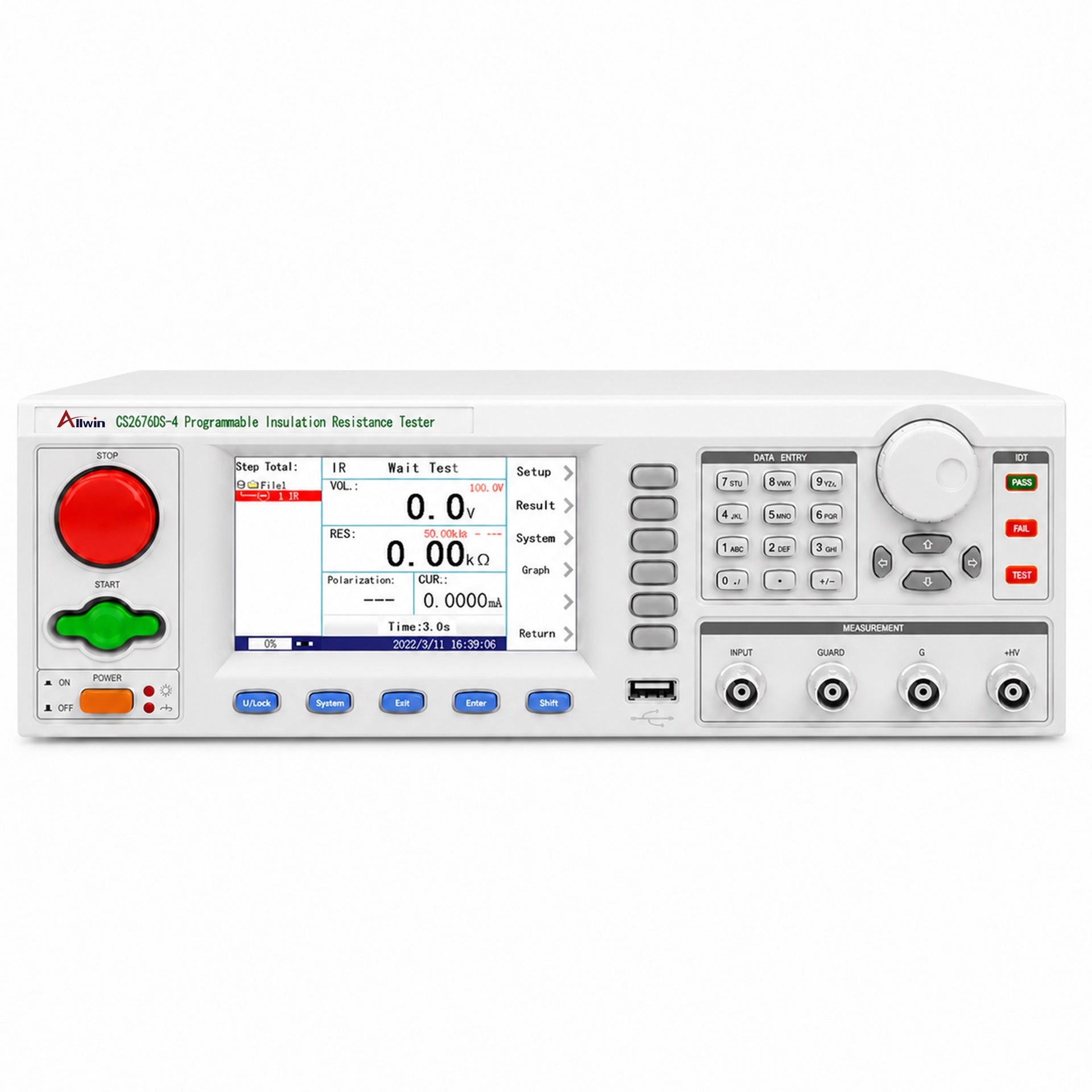

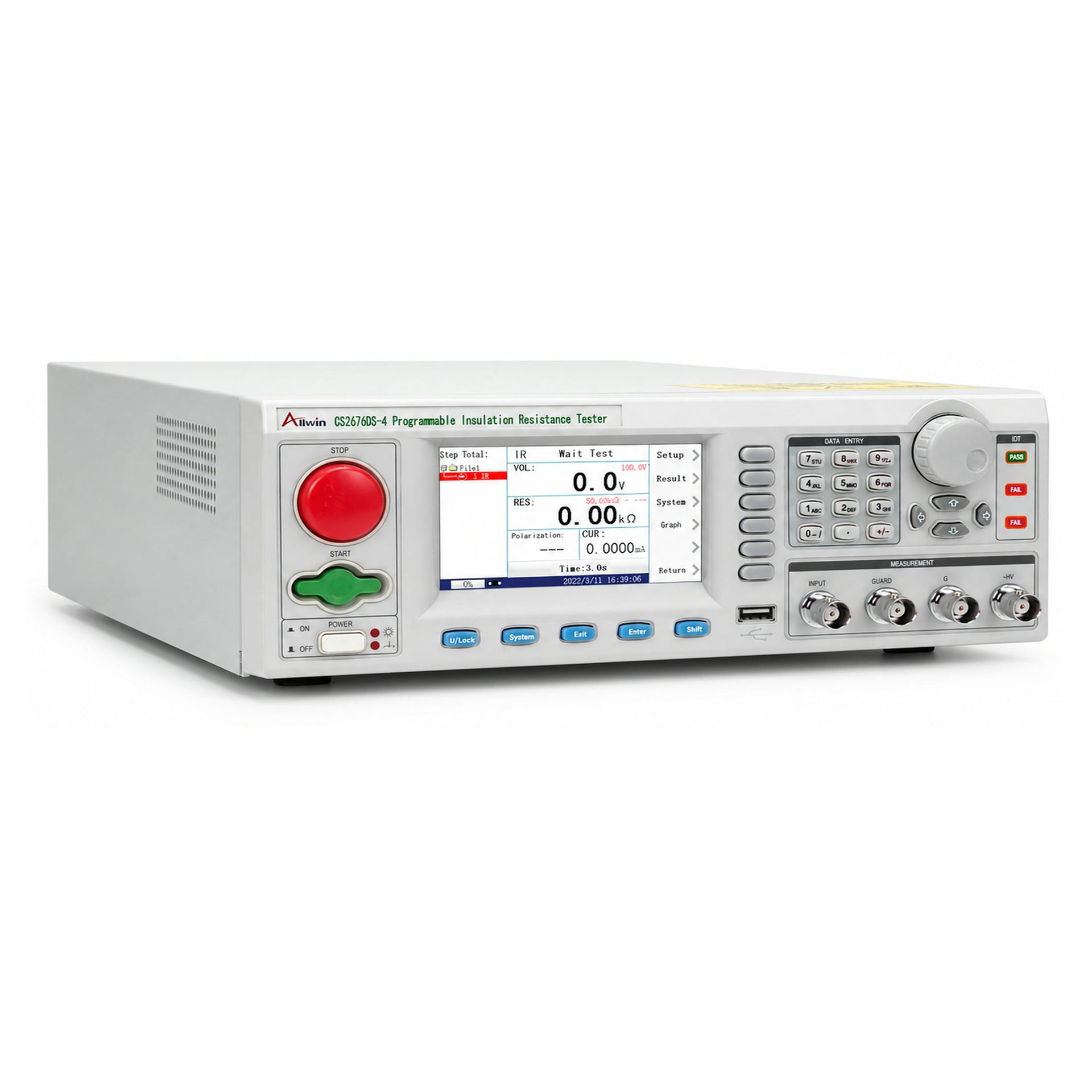

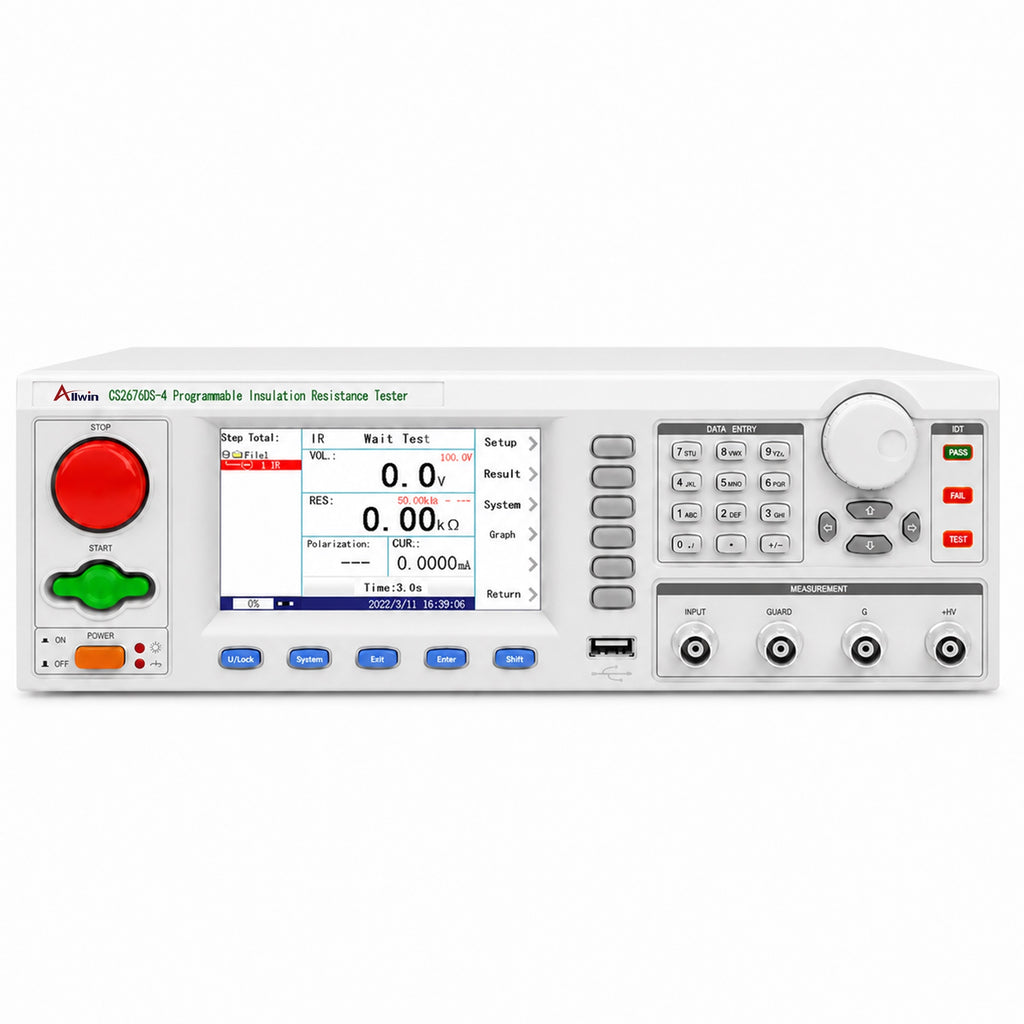

CS2676DS-4 is an ESI Insulation Resistance Tester with a key configuration of ±0.5% insulation voltage accuracy. Contact ESI to confirm configuration, application suitability and quotation.
Key Selling Point
±0.5% insulation voltage accuracy
Key Features
- Programmable settings
Key Technical Specifications
- IR:(0.001-1.000)kV(DC),10.0kΩ-10.000TΩ
- Insulation test voltage measurement accuracy: ±(0.5% + 0.1% of range)
- Insulation resistance measurement accuracy: ±(5% + 0.1% of range)
Testing Program Automation & Interfaces
- Programmable operation: Yes (program steps and interfaces should be confirmed against the manual)
Typical Applications
- General electrical safety testing
Product Information
- Model: CS2676DS-4
- Unit dimensions: 39.2 × 29 × 10 cm
- Net weight: 10 kg
What's in the Box
- Insulation resistance test accessory | Model: CS26018-3 | Qty: 1 set
- Insulation resistance test accessory | Model: CS26018-4 | Qty: 3 sets
- Data cable | Model: CS26023-1 | Qty: 1 set
- Power cord | Model: CS26031-1 | Qty: 1 set
Optional Accessories
- Insulation verification box | Model: CS26034 | Qty: 1 set
Contact & Quote: Contact ESI for pricing, lead time, configuration and application support.
