Description

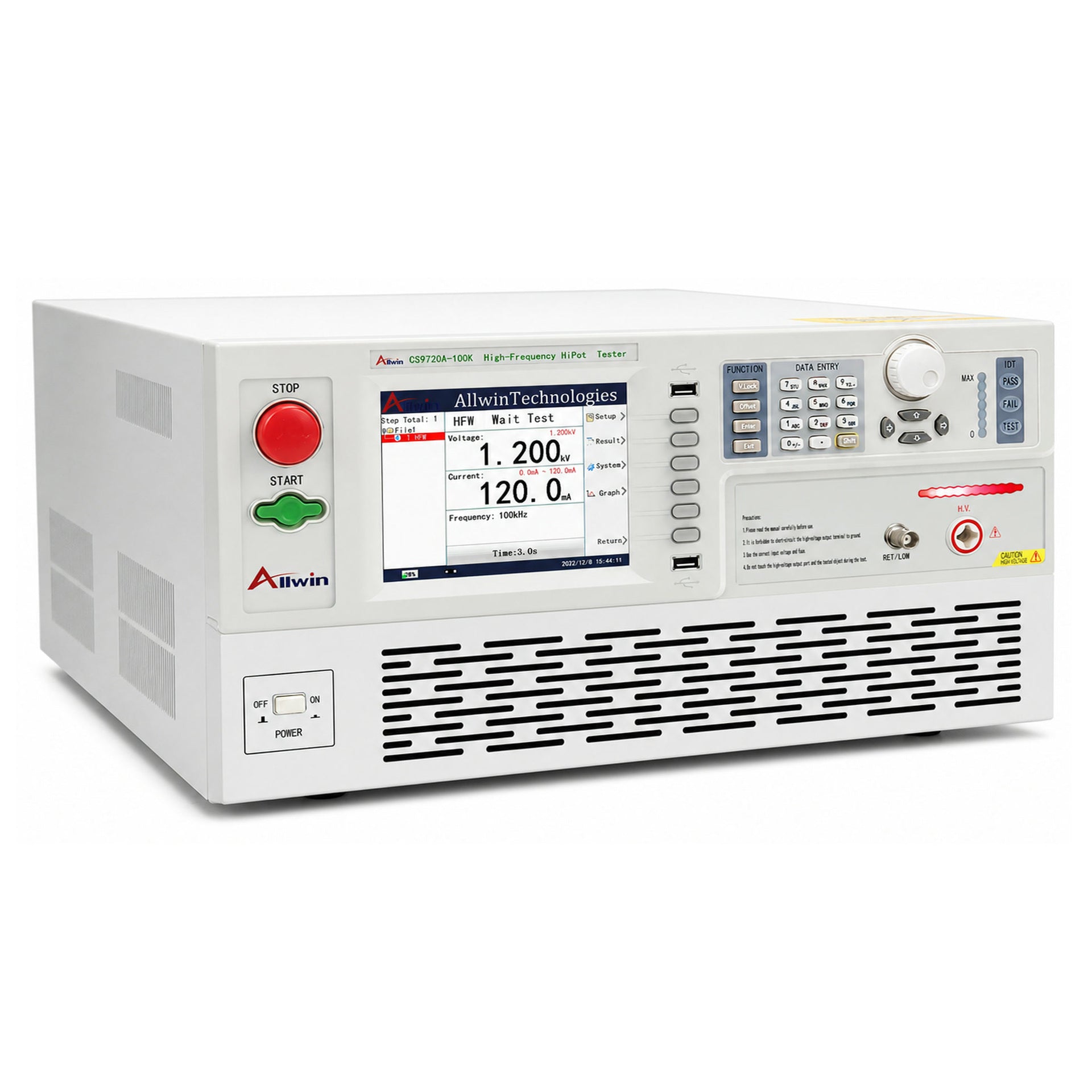

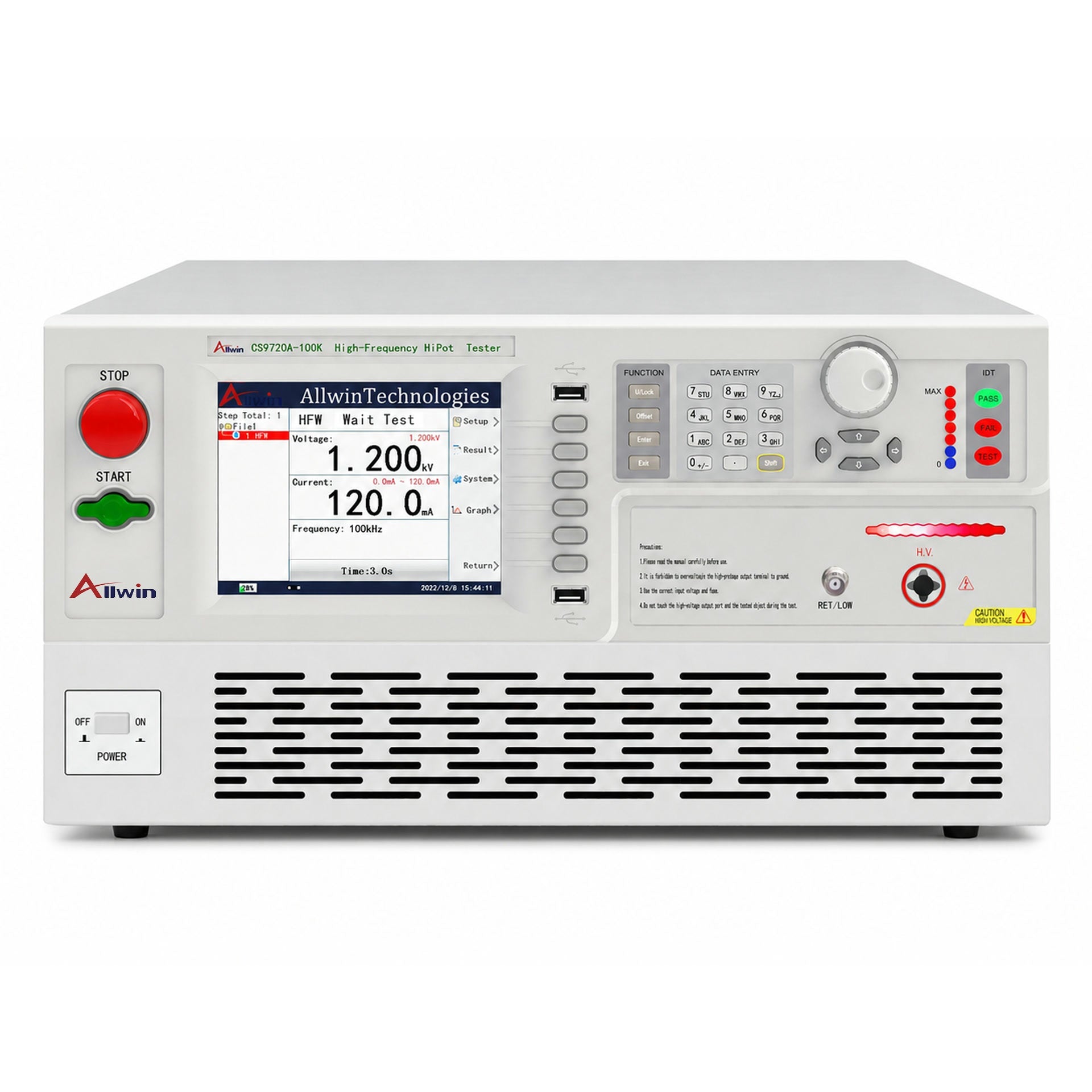

CS9720A-100K is an ESI High-Frequency HiPot Tester with a key configuration of 100kHz. Contact ESI to confirm configuration, application suitability and quotation.
Key Selling Point
100kHz
Key Features
- Test mode: AC
- Programmable settings
- High-frequency range: 100 kHz
Key Technical Specifications
- ACW:0.100-2kV(AC),(0-100)mA(AC)
- Withstand voltage measurement accuracy: ±(2% + 5 V)
- Output frequency: 100 kHz
Testing Program Automation & Interfaces
- Programmable operation: Yes (program steps and interfaces should be confirmed against the manual)
Typical Applications
- High-frequency dielectric withstand testing
Product Information
- Model: CS9720A-100K
- Unit dimensions: 57.8 × 42.6 × 23.45 cm
- Net weight: 29 kg
What's in the Box
- Programmable high-voltage test clip | Model: CS26009-2 | Qty: 1 set
- Insulation resistance test accessory | Model: CS26018-4 | Qty: 1 set
- Data cable | Model: CS26023-1 | Qty: 1 set
- Power cord | Model: CS26031-1 | Qty: 1 set
Optional Accessories
- Dielectric withstand verification box | Model: CS26032 | Qty: 1 set
Contact & Quote: Contact ESI for pricing, lead time, configuration and application support.
