Description

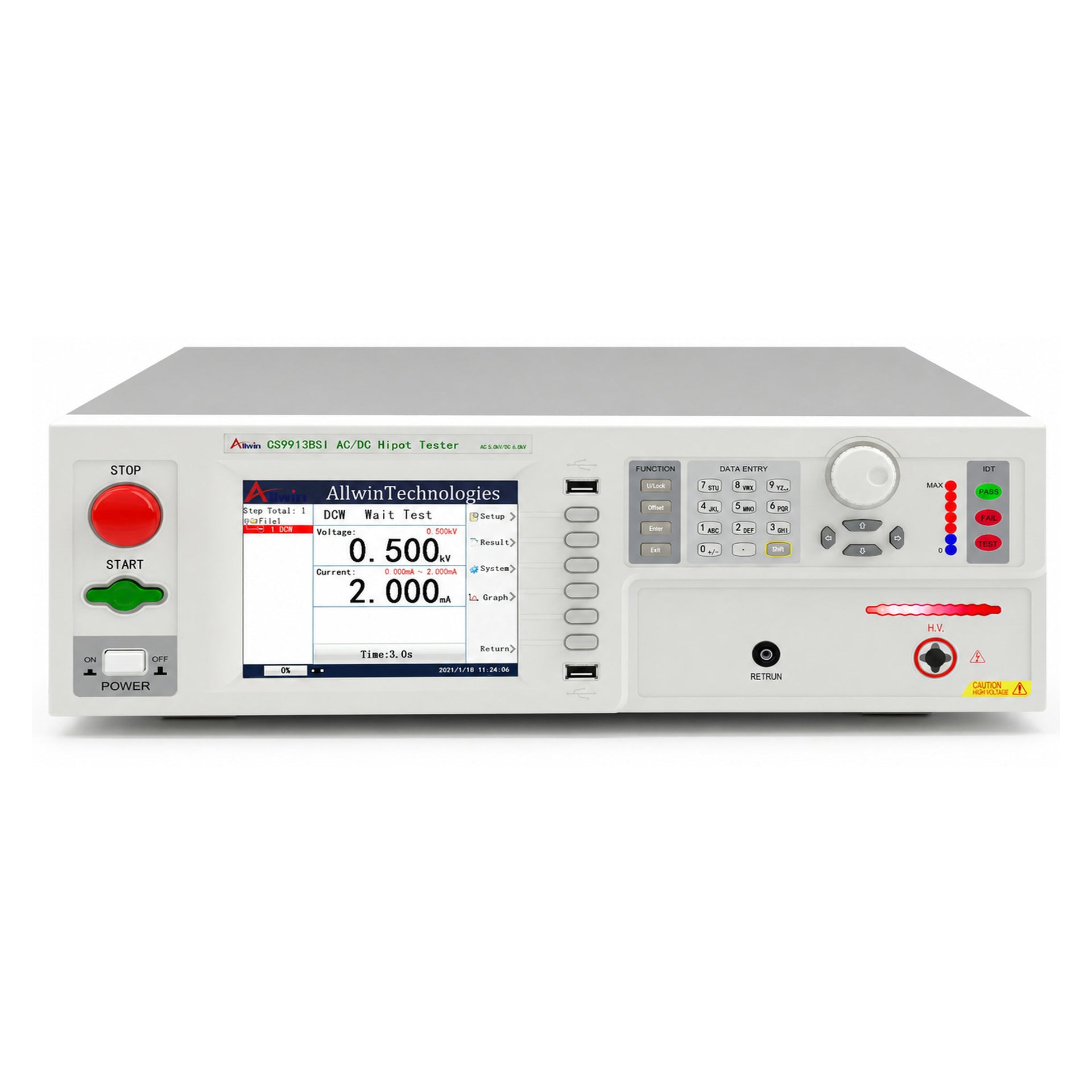

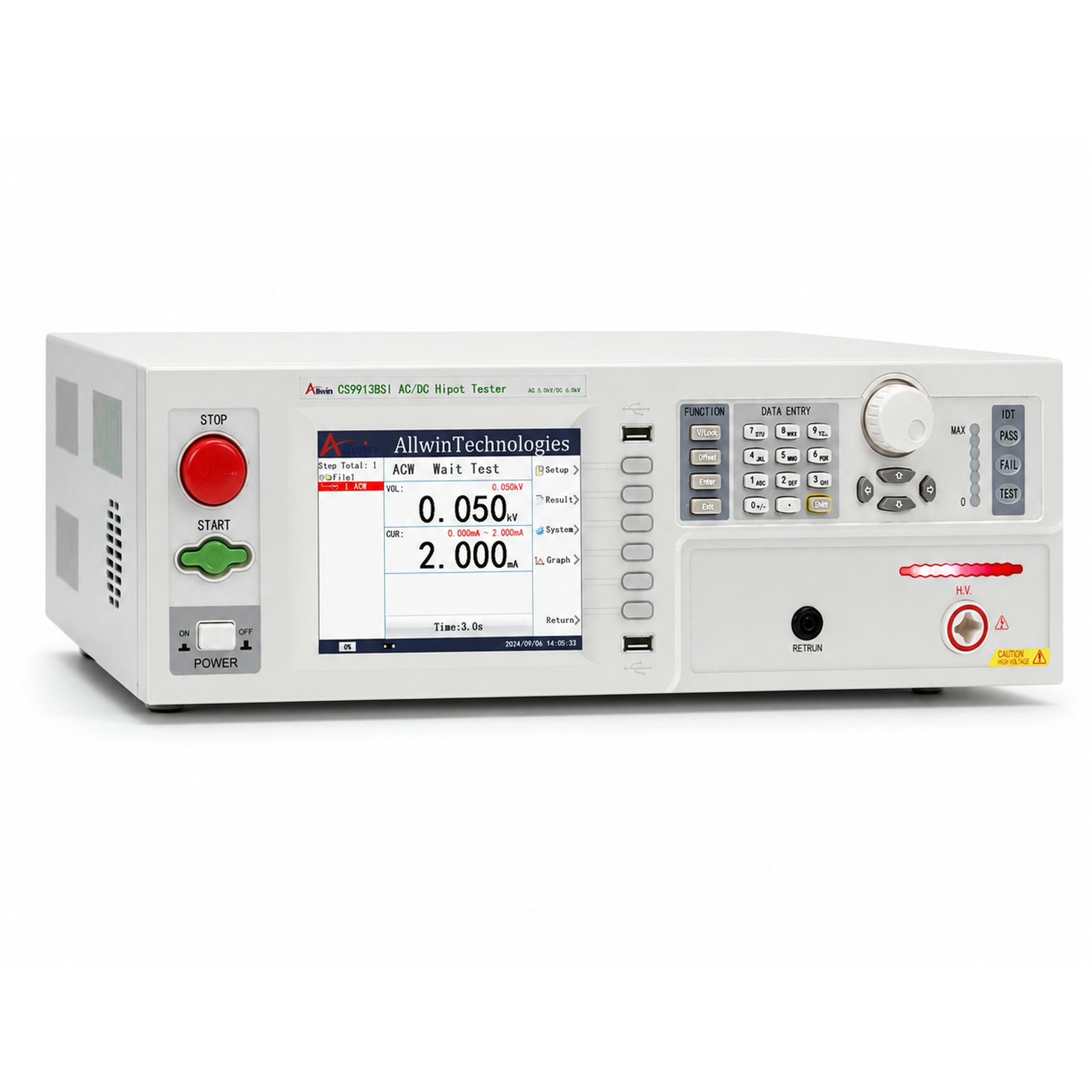

CS9913BSI is an ESI AC/DC HiPot Tester with a key configuration of 6 kV. Contact ESI to confirm configuration, application suitability and quotation.
Key Selling Point
6 kV
Key Features
- Test modes: AC/DC
- Programmable settings
Key Technical Specifications
- ACW:0.050-5kV(AC),(0-50)mA(AC)
- DCW:0.050-6kV(DC),(0-20)mA (DC)
- Withstand voltage measurement accuracy: ±(1% rdg + 0.2% FS)
Testing Program Automation & Interfaces
- Programmable operation: Yes (program steps and interfaces should be confirmed against the manual)
Typical Applications
- General electrical safety testing
Product Information
- Model: CS9913BSI
- Unit dimensions: 52.7 × 42.6 × 14.55 cm
- Net weight: 26 kg
What's in the Box
- Programmable high-voltage test probe | Model: CS26009-1 | Qty: 1 set
- Programmable high-voltage test clip | Model: CS26009-2 | Qty: 1 set
- Programmable current test clip | Model: CS26009-3 | Qty: 1 set
- Power cord | Model: CS26031-1 | Qty: 1 set
- Data cable | Model: CS26023-1 | Qty: 1 set
Optional Accessories
- Dielectric withstand verification box | Model: CS26032 | Qty: 1 set
Contact & Quote: Contact ESI for pricing, lead time, configuration and application support.
