Description

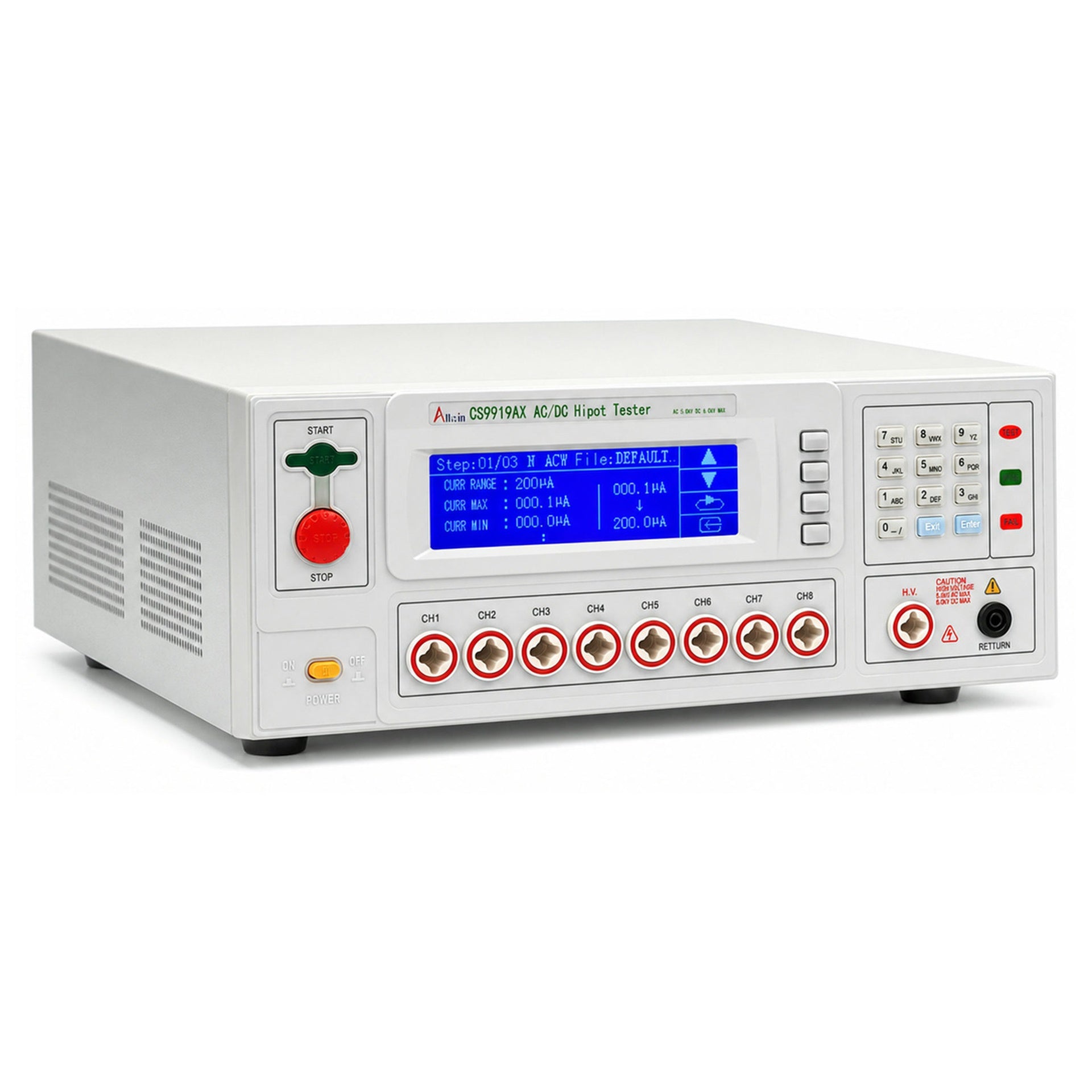

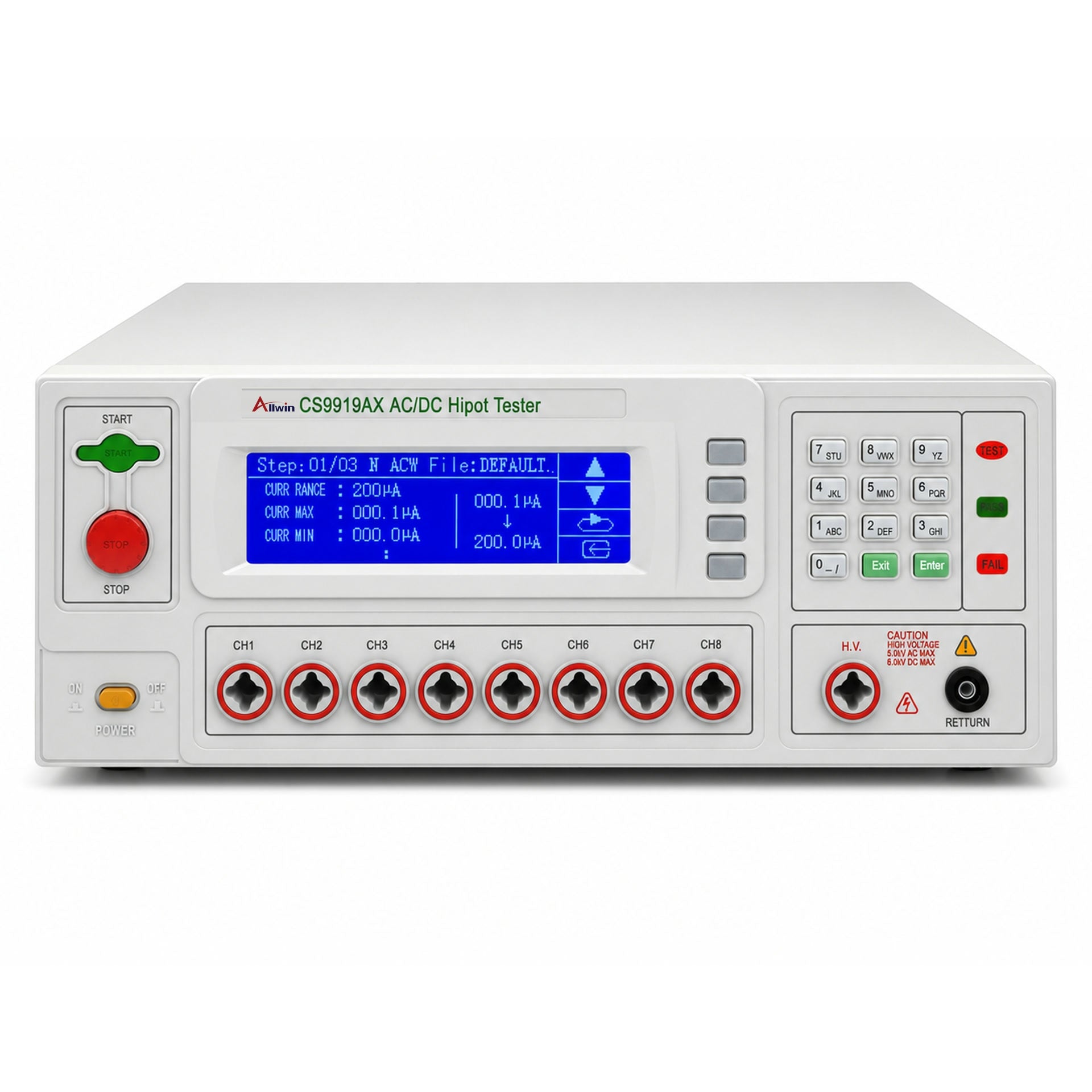

CS9919AX is an ESI AC/DC HiPot Tester with a key configuration of 8-channel scanning. Contact ESI to confirm configuration, application suitability and quotation.
Key Selling Point
8-channel scanning
Key Features
- Test modes: AC/DC
- Programmable settings
- Multi-channel testing: 8 channels
Key Technical Specifications
- ACW:0.100-5kV(AC),(0-20)mA(AC)
- DCW:0.100-6kV(DC),(0-10)mA (DC)
- Withstand voltage measurement accuracy: ±(2% + 5 V)
- Eight-channel scanning test
Testing Program Automation & Interfaces
- Programmable operation: Yes (program steps and interfaces should be confirmed against the manual)
Typical Applications
- General electrical safety testing
Product Information
- Model: CS9919AX
- Unit dimensions: 49.7 × 35.5 × 14.65 cm
- Net weight: 16 kg
What's in the Box
- Programmable high-voltage test probe | Model: CS26009-1 | Qty: 1 set
- Programmable high-voltage test clip | Model: CS26009-2 | Qty: 9 sets
- Programmable current test clip | Model: CS26009-3 | Qty: 1 set
- Power cord | Model: CS26031-1 | Qty: 1 set
Optional Accessories
- Dielectric withstand verification box | Model: CS26032 | Qty: 1 set
Contact & Quote: Contact ESI for pricing, lead time, configuration and application support.
