Description

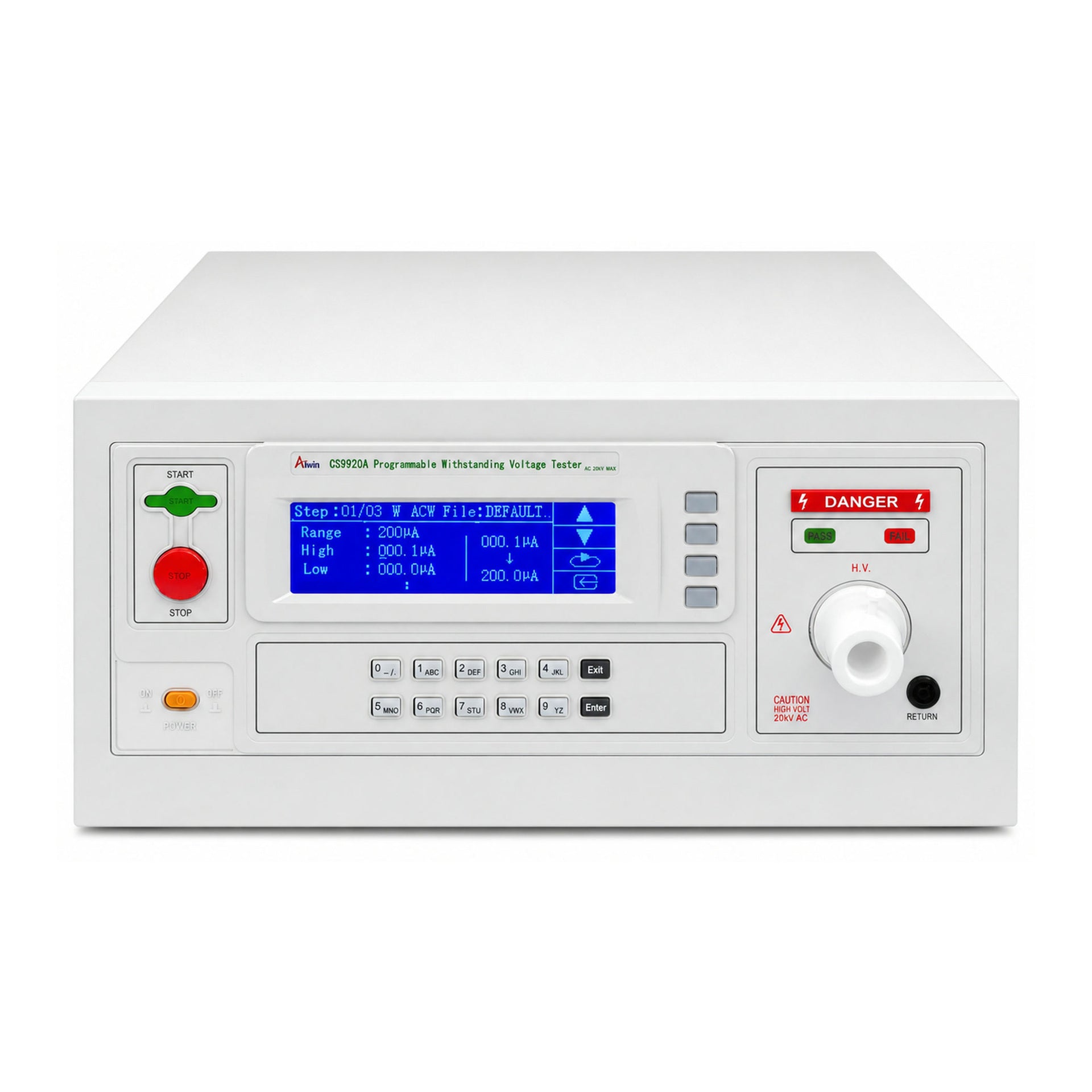

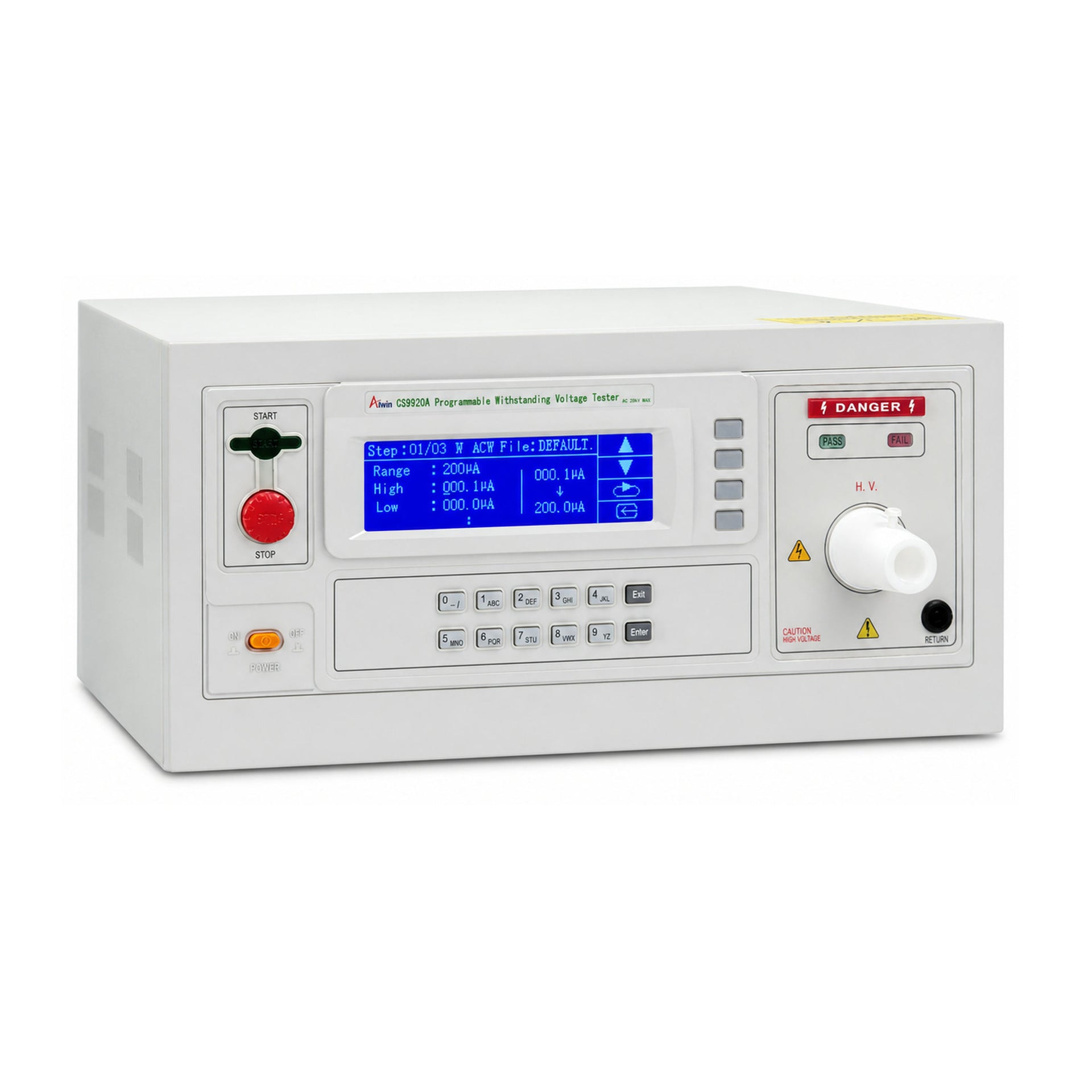

CS9920A is an ESI Ultra-High Voltage HiPot Tester with a key configuration of 20kV. Contact ESI to confirm configuration, application suitability and quotation.
Key Selling Point
20kV
Key Features
- Test mode: AC
- Programmable settings
- Ultra-high-voltage range: 20 kV
Key Technical Specifications
- ACW:1-20kV(AC),(0-10)mA(AC)
- Withstand voltage measurement accuracy: ±(2% + 5 V)
Testing Program Automation & Interfaces
- Programmable operation: Yes (program steps and interfaces should be confirmed against the manual)
Typical Applications
- Ultra-high-voltage testing
Product Information
- Model: CS9920A
- Unit dimensions: 62.2 × 46 × 25.35 cm
- Net weight: 39.25 kg
What's in the Box
- High-voltage test clip | Model: CS26016-6_2m | Qty: 1 set
- Programmable current test clip | Model: CS26009-3_2m | Qty: 1 set
- Adapter box | Model: CS26009-24L | Qty: 1 set
- Power cord | Model: CS26031-1 | Qty: 1 set
Optional Accessories
- Dielectric withstand verification box | Model: CS26032 | Qty: 1 set
Standards & Documentation
- CE: IEC60335-1:2016
- UL: UL62368-1:2023
- GB: GB/T4706.1-2024
Contact & Quote: Contact ESI for pricing, lead time, configuration and application support.
