Description

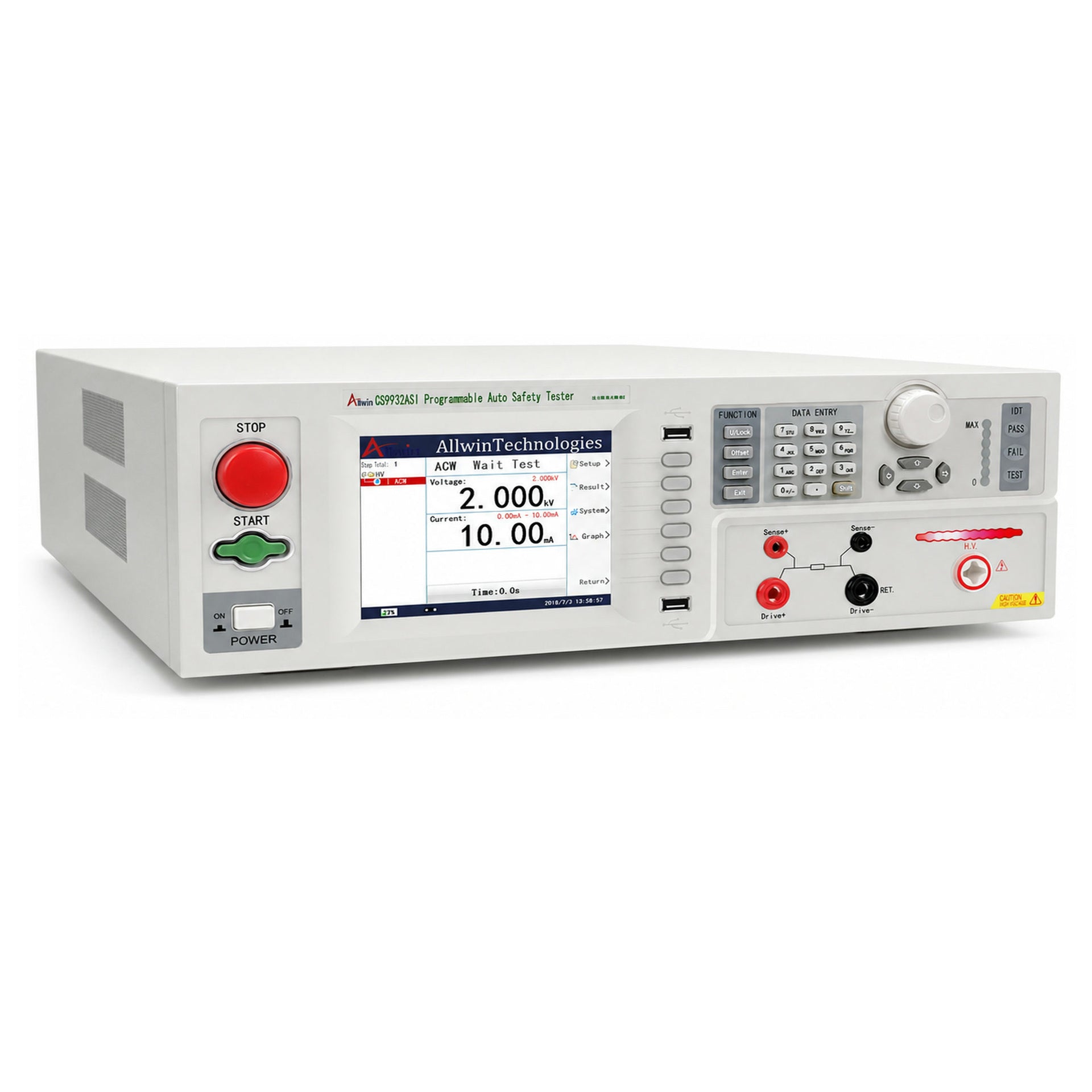

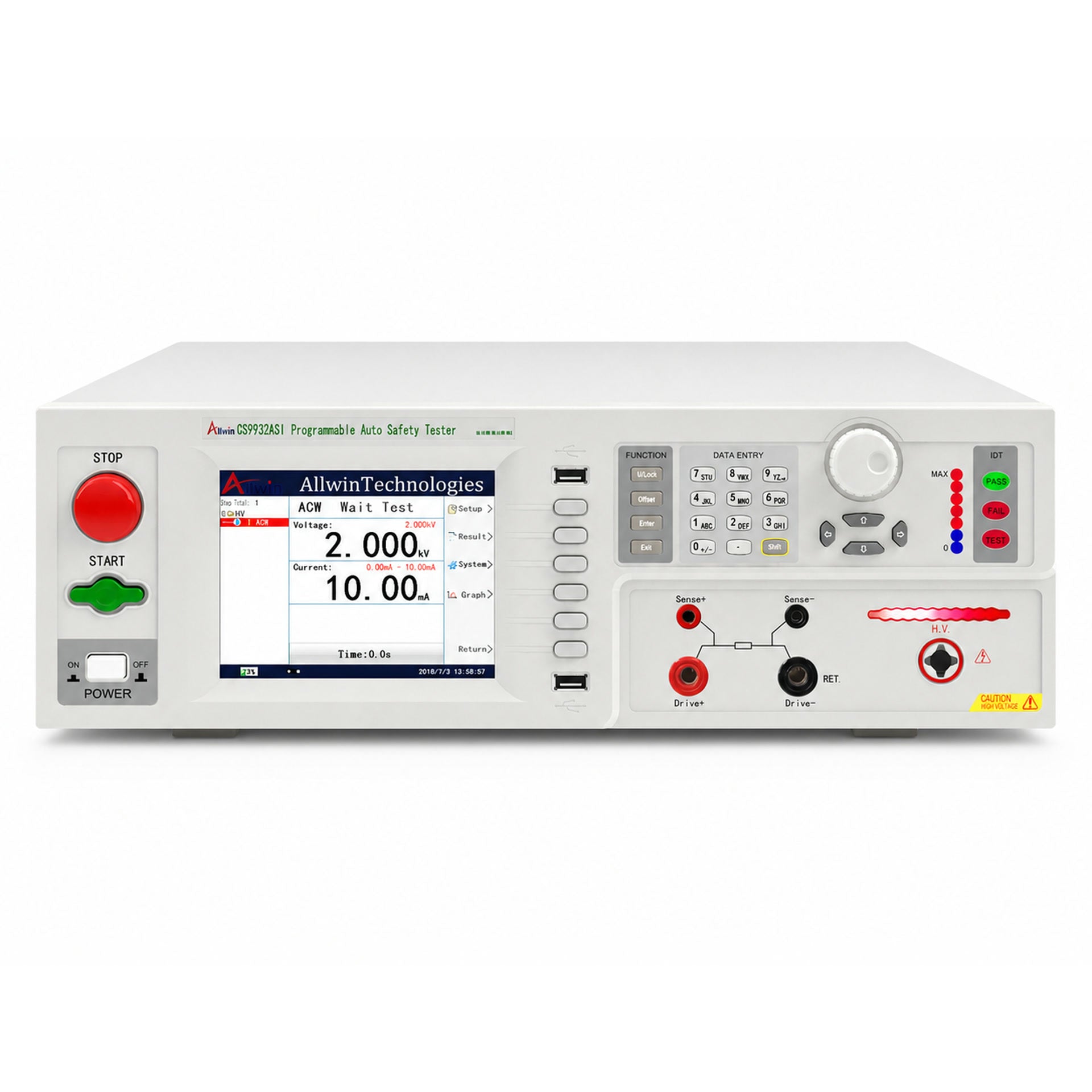

CS9932ASI is an ESI 3-in-1 Electrical Safety Tester with a key configuration of AC/DC HiPot / IR / Ground Bond. Contact ESI to confirm configuration, application suitability and quotation.
Key Selling Point
AC/DC HiPot / IR / Ground Bond
Product Overview
Combines dielectric withstand, insulation resistance and ground-bond testing to assess withstand strength, insulation performance and grounding continuity.
Key Features
- Test modes: AC/DC
- Programmable settings
- Multifunction type: 3-in-1 tester
Key Technical Specifications
- ACW:0.050-5kV(AC),(0-50)mA(AC)
- DCW:0.050-6kV(DC),(0-20)mA (DC)
- Withstand voltage measurement accuracy: ±(1% rdg + 0.2% FS)
- IR:(0.100-2.500)kV(DC),1MΩ-49.99GΩ
- Insulation test voltage measurement accuracy: ±(1% rdg + 0.2% FS)
- Insulation resistance measurement accuracy: ±5%
- ACGR:(5-32)A,(10-510)mΩ
- Ground-bond current accuracy: ±(1% rdg + 0.2 A)
- Ground resistance accuracy: ±(2% rdg + 2 mΩ)
Testing Program Automation & Interfaces
- Programmable operation: Yes (program steps and interfaces should be confirmed against the manual)
Typical Applications
- General electrical safety testing
Product Information
- Model: CS9932ASI
- Unit dimensions: 52.7 × 42.6 × 14.55 cm
- Net weight: 28 kg
What's in the Box
- Programmable high-voltage test probe | Model: CS26009-6 | Qty: 1 set
- Programmable high-voltage test clip | Model: CS26009-7 | Qty: 1 set
- Programmable current test clip | Model: CS26009-8 | Qty: 1 set
- Ground-bond accessory | Model: CS26045Y-13 | Qty: 1 set
- Ground-bond accessory | Model: CS26045Y-16 | Qty: 1 set
- Electrical safety analyser accessory | Model: CS26017-3 | Qty: 1 set
- Test box | Model: CS26009-23L | Qty: 1 set
- Data cable | Model: CS26023-1 | Qty: 1 set
- Power cord | Model: CS26031-1 | Qty: 1 set
Optional Accessories
- Dielectric withstand verification box | Model: CS26032 | Qty: 1 set
- Insulation verification box | Model: CS26034 | Qty: 1 set
- Ground-bond verification box | Model: CS26035 | Qty: 1 set
Contact & Quote: Contact ESI for pricing, lead time, configuration and application support.
