Description

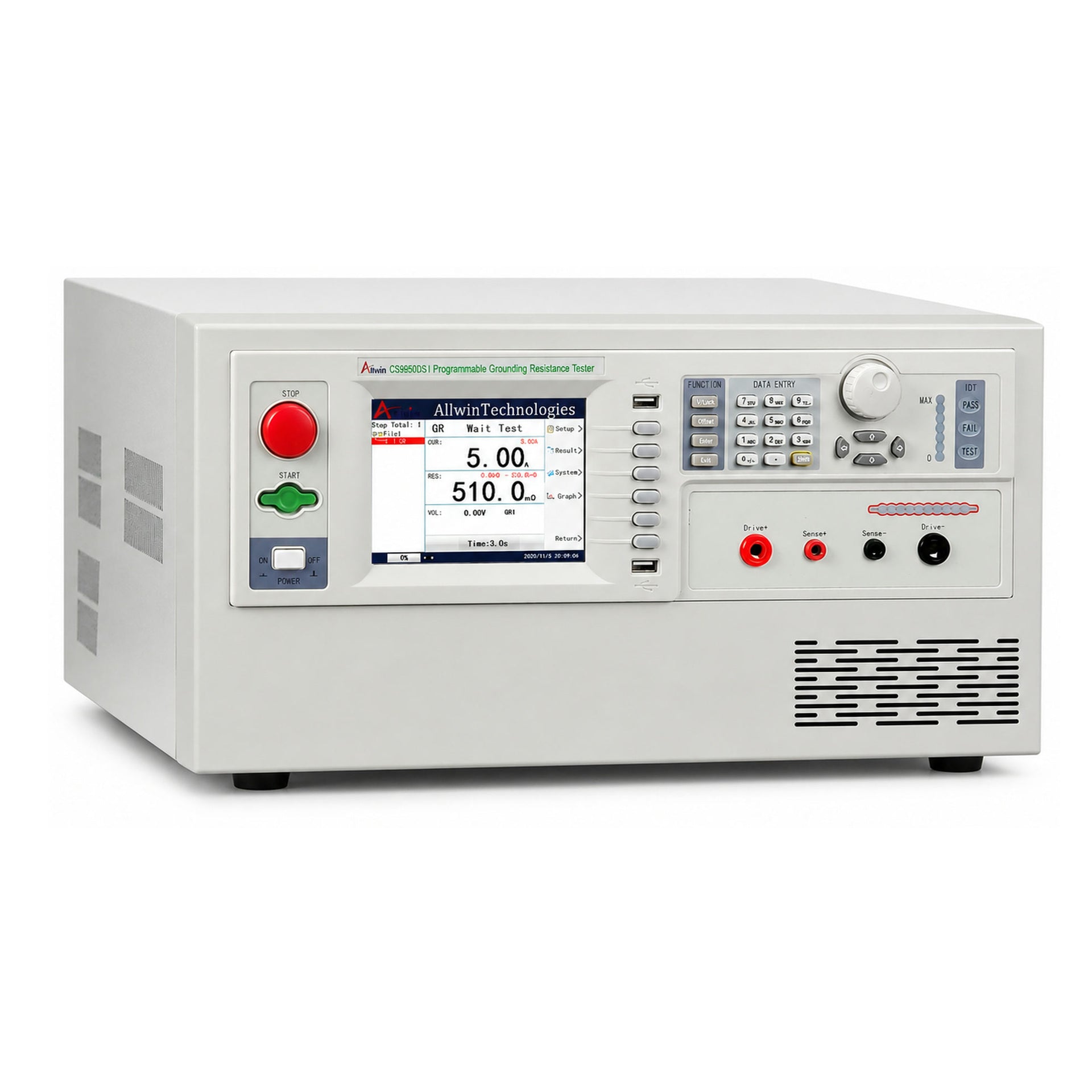

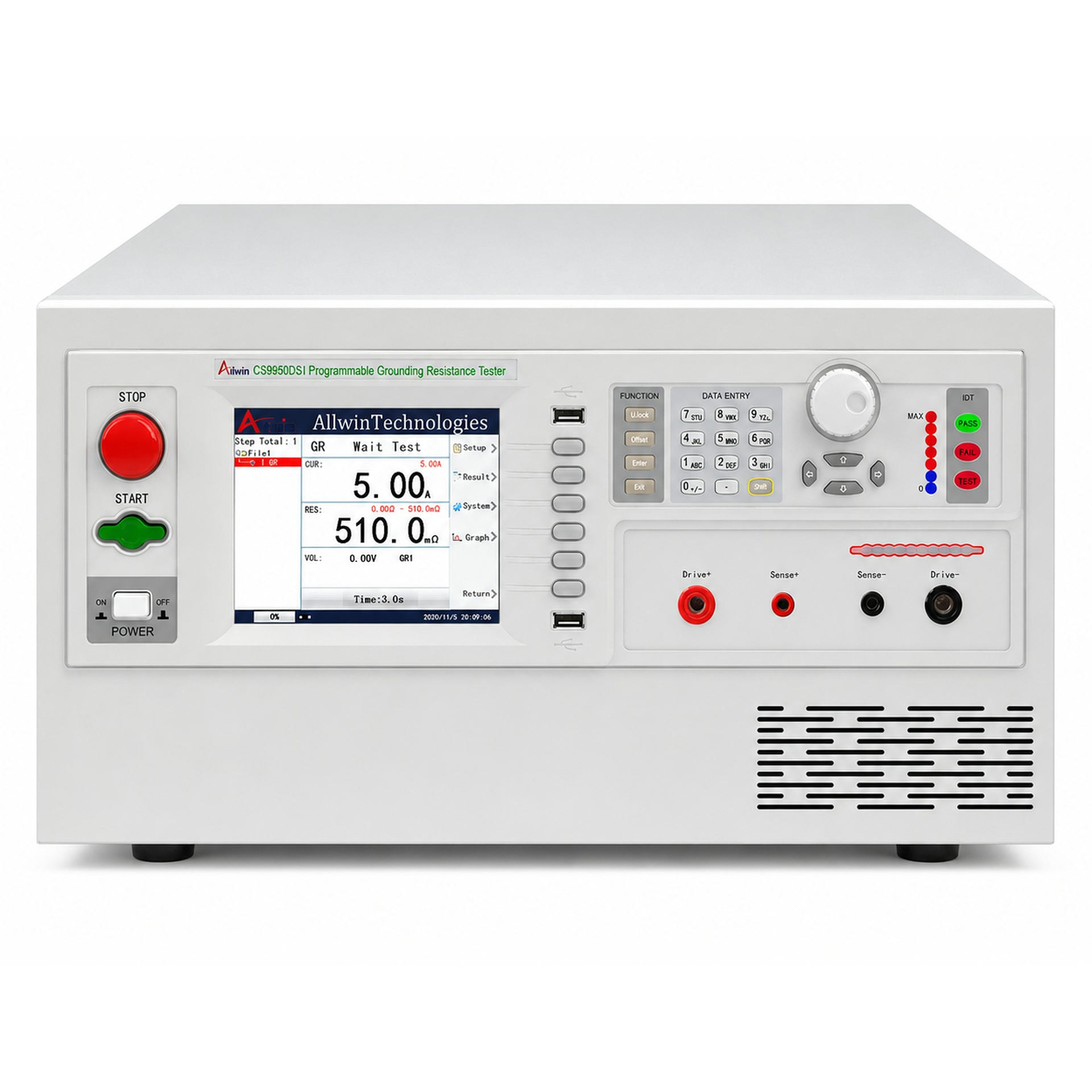

CS9950DSI is an ESI Ground Bond Tester with a key configuration of 42-60A. Contact ESI to confirm configuration, application suitability and quotation.
Key Selling Point
42-60A
Key Features
- Programmable settings
Key Technical Specifications
- ACGR:(5-60)A,(10-510)mΩ
- Ground-bond current accuracy: ±(1% rdg + 0.2 A)
- Ground resistance accuracy: ±(2% rdg + 2 mΩ)
Testing Program Automation & Interfaces
- Programmable operation: Yes (program steps and interfaces should be confirmed against the manual)
Typical Applications
- General electrical safety testing
Product Information
- Model: CS9950DSI
- Unit dimensions: 63.25 × 49 × 27.95 cm
- Net weight: 41.25 kg
What's in the Box
- Ground-bond accessory (red) | Model: CS26011-3 | Qty: 1 set
- Ground-bond accessory (black) | Model: CS26011-4 | Qty: 1 set
- Power cord | Model: CS26031-1 | Qty: 1 set
- Data cable | Model: CS26023-1 | Qty: 1 set
Optional Accessories
- Ground-bond verification box | Model: CS26035 | Qty: 1 set
Contact & Quote: Contact ESI for pricing, lead time, configuration and application support.
