Description

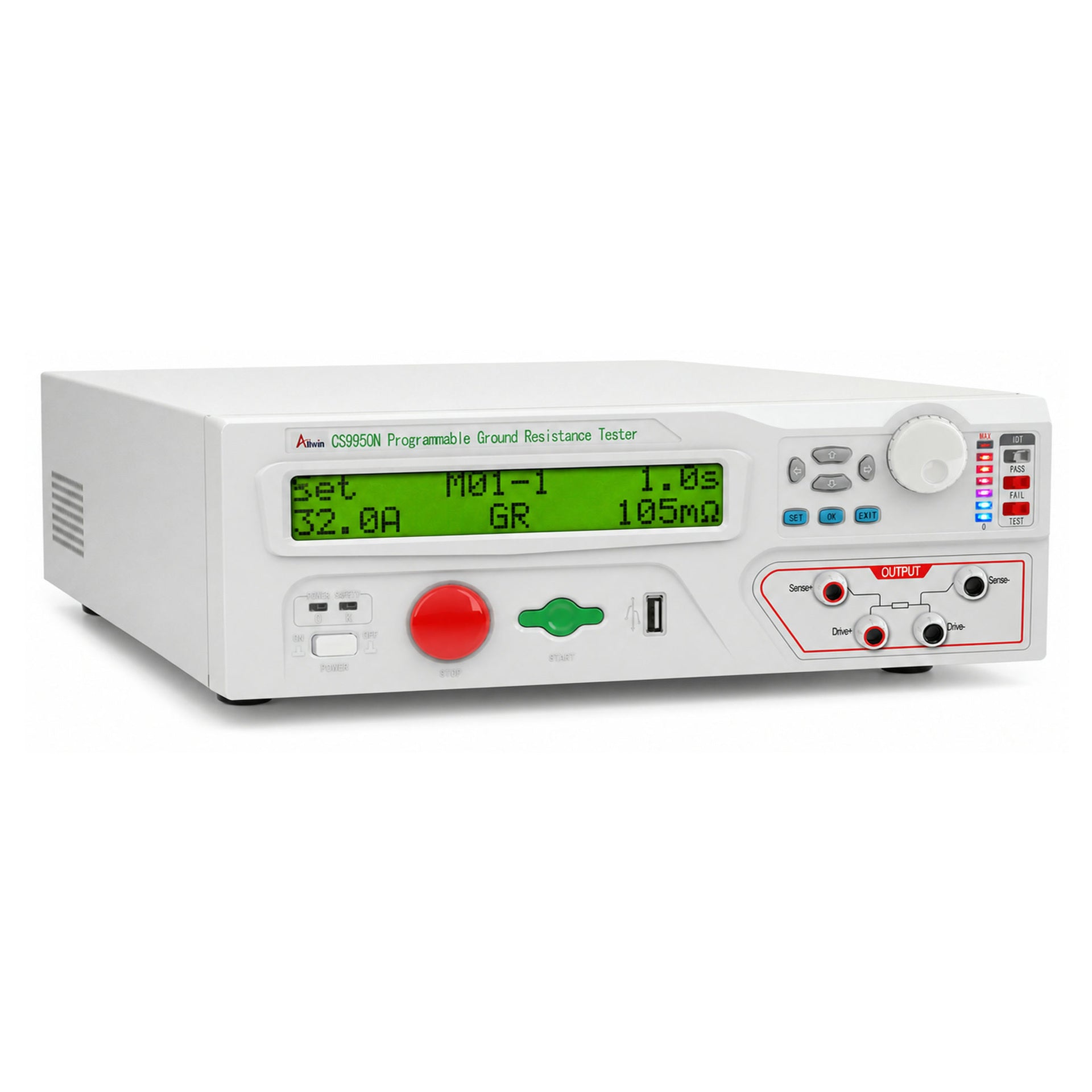

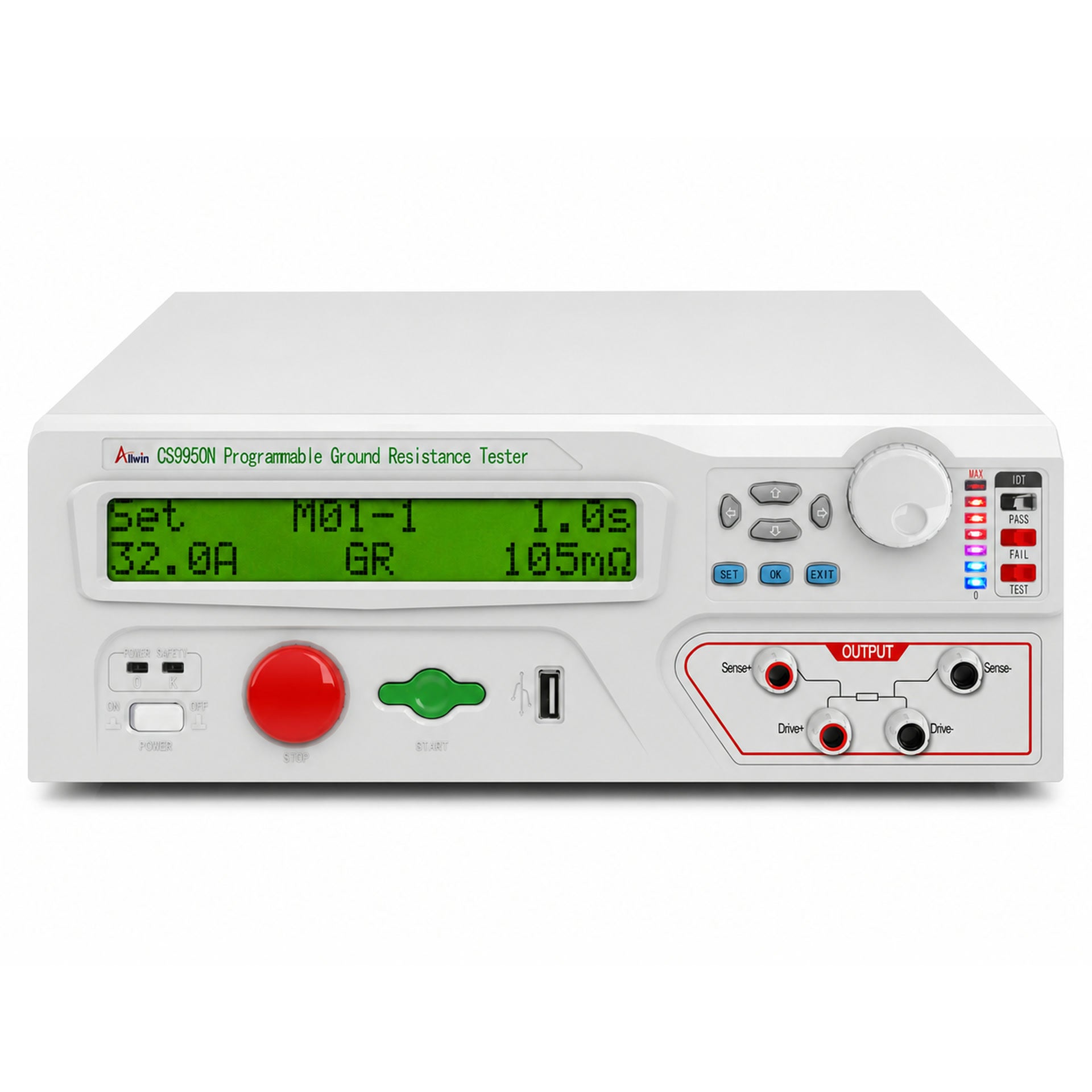

CS9950N is an ESI Ground Bond Tester with a key configuration of ≤32A. Contact ESI to confirm configuration, application suitability and quotation.
Key Selling Point
≤32A
Key Features
- Programmable settings
Key Technical Specifications
- ACGR:(3-32)A,(10-510)mΩ
- Ground-bond current accuracy: ±(2% + 2 digits)
- Ground resistance accuracy: ±(2% + 2 mΩ)
Testing Program Automation & Interfaces
- Programmable operation: Yes (program steps and interfaces should be confirmed against the manual)
Typical Applications
- General electrical safety testing
Product Information
- Model: CS9950N
- Unit dimensions: 29 × 41.3 × 11.3 cm
- Net weight: 12 kg
What's in the Box
- Ground-bond accessory (red) | Model: CS26011-1 | Qty: 1 set
- Ground-bond accessory (black) | Model: CS26011-2 | Qty: 1 set
- Power cord | Model: CS26031-1 | Qty: 1 set
Optional Accessories
- Ground-bond verification box | Model: CS26035 | Qty: 1 set
Standards & Documentation
- GB: GB/T4706.1-2024
Contact & Quote: Contact ESI for pricing, lead time, configuration and application support.
